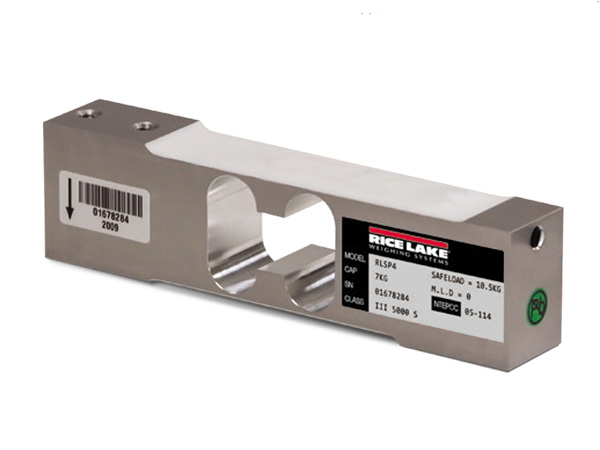

Loadcell RICE LAKE RLSP4
• Capacities: 7kgf – 100kgf
• Fully welded, Anodized aluminum
• Hermetically sealed, IP66
• Certified to OIML R-60, 3000d and NTEP 5000d
| Model | RLSP4 | |
| Rated Capacity (kgf) | 7, 10, 15, 20, 30, 50, 75, 100 | |
| Accuracy Class According to OIML-R-60 | C3 | |
| Max. Number of Verification Intervals | 3000 | |
| Rate Output mV/V | 2.0 | |
| Combiner Error %RO | ± 0.02 | |
| Non -Repeatability %RO | ± 0.01 | |
| Maximum Safe Over Load % Emax | 150 | |
| Maximum Safe Side Load % Emax | 100 | |
| Excitation Voltage | Recommended (V) | 5 ~ 10 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 350 ± 3.5 |
| Output (Ω) | 353 ± 3 | |
| Insulation (MΩ) | > 5.000 | |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -18 ~ +65 | |
| Material | Aluminum | |
| Cable Specification | ø 6.0 x 6P x 3m | |
| IP | 66 | |
