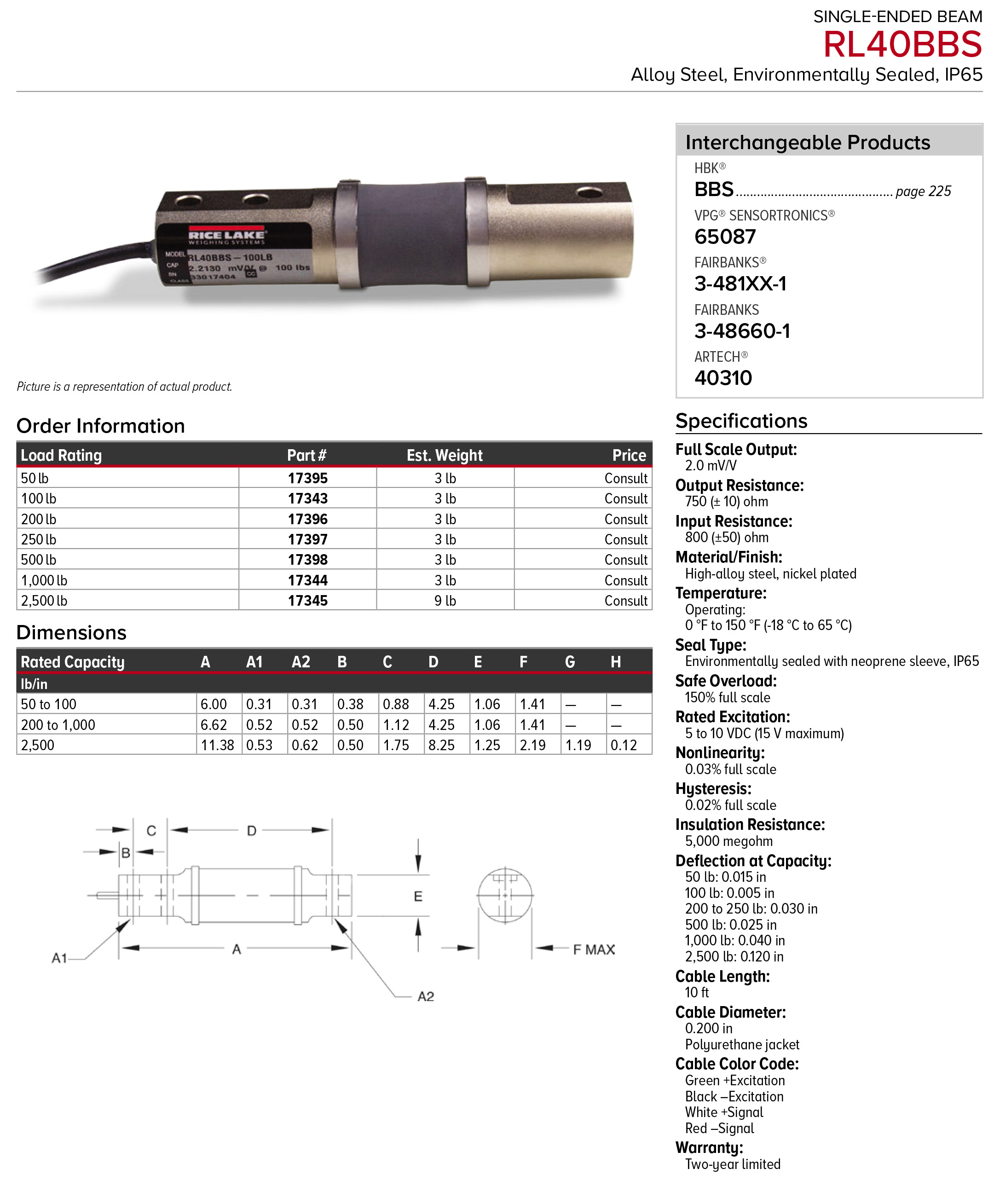

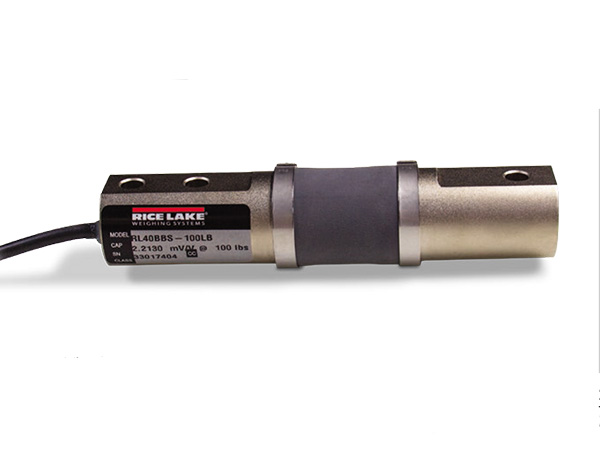

Loadcell RICE LAKE RL40BBS
• Capacities: 50lbs ~ 2.500lbs
• Fully welded, Nickel Plated alloy steel
• Hermetically sealed, IP65
| Model | RL40BBS | |
| Rated Capacity (lbs) | 50, 100, 200, 250, 500, 1.000, 2.500 | |
| Accuracy Class According to OIML-R-60 | – | |
| Max. Number of Verification Intervals | – | |
| Rate Output mV/V | 2.0 | |
| Combiner Error %RO | ± 0.02 | |
| Non -Repeatability %RO | ± 0.03 | |
| Maximum Safe Over Load % Emax | 150 | |
| Maximum Safe Side Load % Emax | 100 | |
| Excitation Voltage | Recommended (V) | 5 ~ 10 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 800 ± 50 |
| Output (Ω) | 750 ± 10 | |
| Insulation (MΩ) | > 5.000 | |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -18 ~ +65 | |
| Material | Nickel Plated alloy steel | |
| Cable Specification | ø 6.0 x 4P x 3m | |
| IP | 65 | |
