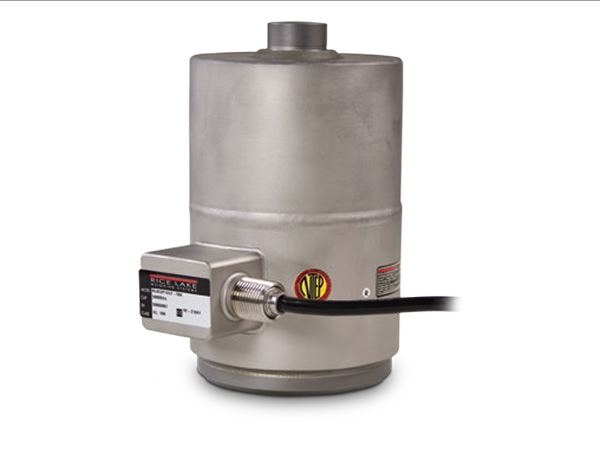

Loadcell RICE LAKE RL8C2P1SST
• Capacities: 50.000lbs ~ 200.000lbs
• Fully welded, Stainless steel
• Hermetically sealed, IP68
• Certified to OIML R-60, IIIL and NTEP 10000d
| Model | RL8C2P1SST | |
| Rated Capacity (lbs) | 50.000, 100.000, 200.000 | |
| Accuracy Class According to OIML-R-60 | IIIL | |
| Max. Number of Verification Intervals | 10000 | |
| Rate Output mV/V | 2.0 | |
| Combiner Error %RO | ± 0.03 | |
| Non -Repeatability %RO | ± 0.01 | |
| Maximum Safe Over Load % Emax | 150 | |
| Maximum Safe Side Load % Emax | 100 | |
| Excitation Voltage | Recommended (V) | 5 ~ 10 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 350 ± 3.5 |
| Output (Ω) | 350 ± 3.5 | |
| Insulation (MΩ) | > 5.000 | |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -18 ~ +65 | |
| Material | Stainless steel | |
| Cable Specification | ø 6.0 x 4P x 10.6m | |
| IP | 68 | |
