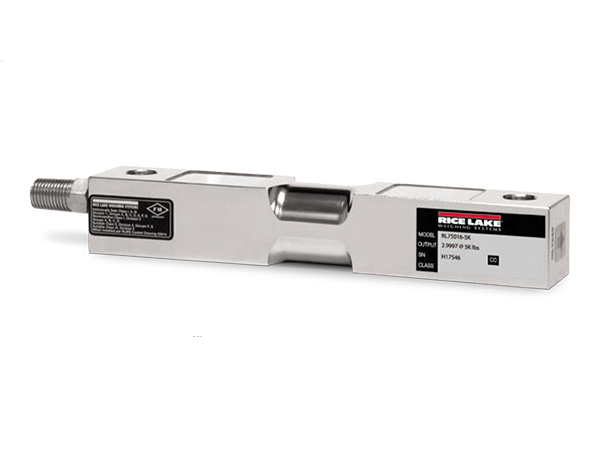

Loadcell RICE LAKE RL75016
• Capacities: 1.500 lbs ~ 15, 000 lbs
• Fully welded, Nickel Plated High-alloy steel
• Hermetically sealed, IP67
| Model | RL75016 | |
| Rated Capacity (lbs) | 1.500, 15.000 | |
| Accuracy Class According to OIML-R-60 | – | |
| Max. Number of Verification Intervals | – | |
| Rate Output mV/V | 3.0 | |
| Combiner Error %RO | ± 0.03 | |
| Non -Repeatability %RO | ± 0.02 | |
| Maximum Safe Over Load % Emax | 150 | |
| Maximum Safe Side Load % Emax | 100 | |
| Excitation Voltage | Recommended (V) | 5 ~ 10 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 770 ± 10 |
| Output (Ω) | 700 ± 5 | |
| Insulation (MΩ) | > 5.000 | |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -18 ~ +65 | |
| Material | Nickel Plated Alloy steel | |
| Cable Specification | ø 6.0 x 4P x 7.6m | |
| IP | 67 | |
