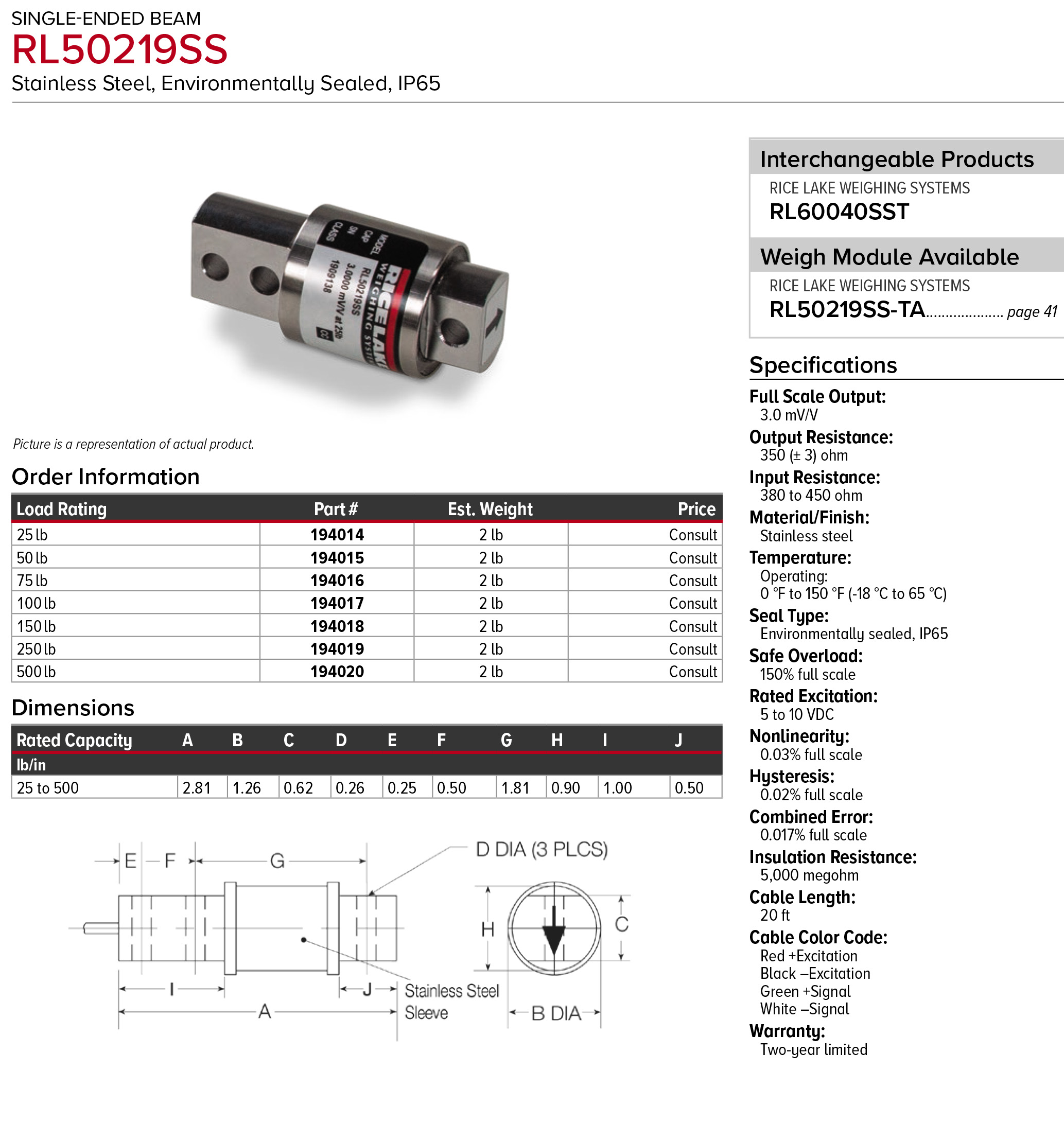

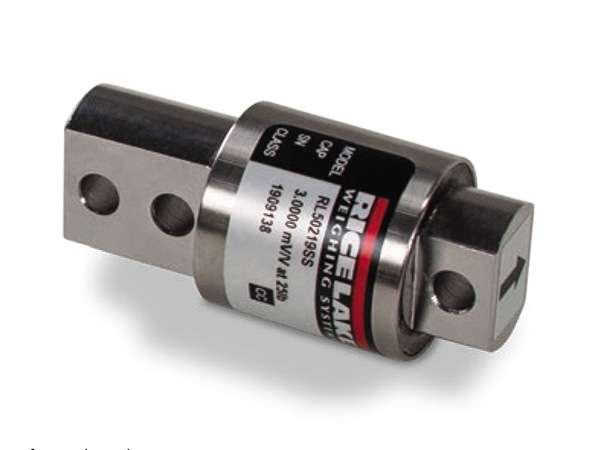

Loadcell RICE LAKE RL50219SS
• Capacities: 25 lbs ~ 500 lbs
• Fully welded, Stainless steel
• Hermetically sealed, IP65
| Model | RL50219SS | |
| Rated Capacity (lbs) | 25, 50, 75, 100, 150, 250, 500 | |
| Accuracy Class According to OIML-R-60 | – | |
| Max. Number of Verification Intervals | – | |
| Rate Output mV/V | 3.0 | |
| Combiner Error %RO | ± 0.03 | |
| Non -Repeatability %RO | ± 0.02 | |
| Maximum Safe Over Load % Emax | 150 | |
| Maximum Safe Side Load % Emax | 100 | |
| Excitation Voltage | Recommended (V) | 5 ~ 10 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 380 ~ 450 |
| Output (Ω) | 350 ± 3 | |
| Insulation (MΩ) | > 5.000 | |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -18 ~ +65 | |
| Material | Stainless steel | |
| Cable Specification | ø 6.0 x 4P x 6m | |
| IP | 65 | |
