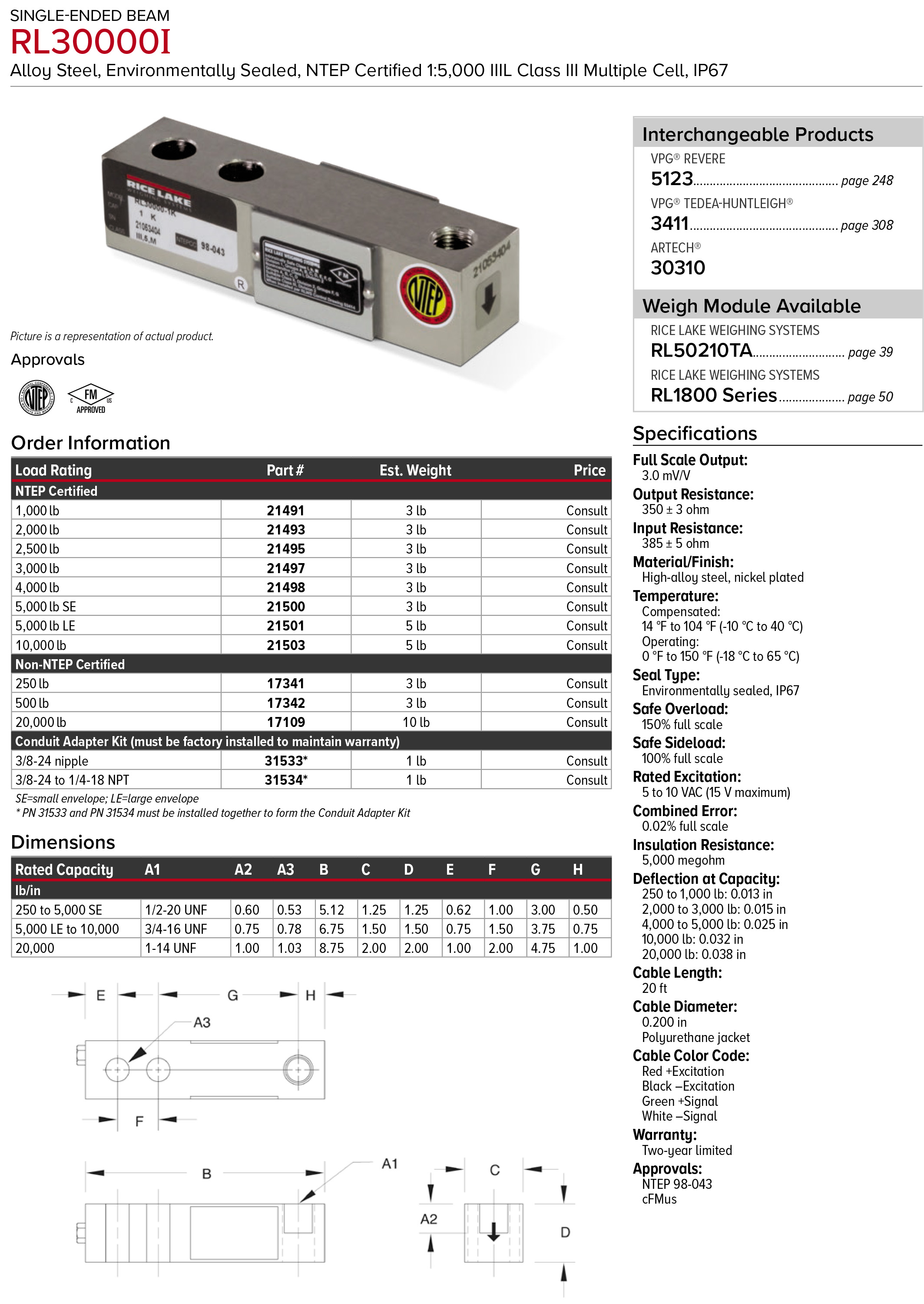

Loadcell RICE LAKE RL3000I
• Capacities: 1.000 lbs ~ 20.000 lbs
• Fully welded, Nickel Plated alloy steel
• Hermetically sealed, IP67
• Certified to OIML R-60, C3 – 3000 NTEP 5.000
| Model | RL30000I | |
| Rated Capacity (lbs) | 1.000, 2.000, 2.500, 3.000, 4.000, 5.000, 10.000, 20.000 | |
| Accuracy Class According to OIML-R-60 | C3 | |
| Max. Number of Verification Intervals | 3000 | |
| Rate Output mV/V | 3.0 | |
| Combiner Error %RO | ± 0.02 | |
| Non -Repeatability %RO | ± 0.03 | |
| Maximum Safe Over Load % Emax | 150 | |
| Maximum Safe Side Load % Emax | 100 | |
| Excitation Voltage | Recommended (V) | 5 ~ 10 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 385 ± 5 |
| Output (Ω) | 350 ± 3 | |
| Insulation (MΩ) | > 5.000 | |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -18 ~ +65 | |
| Material | Stainless steel | |
| Cable Specification | ø 6.0 x 4P x 6m | |
| IP | 67 | |
