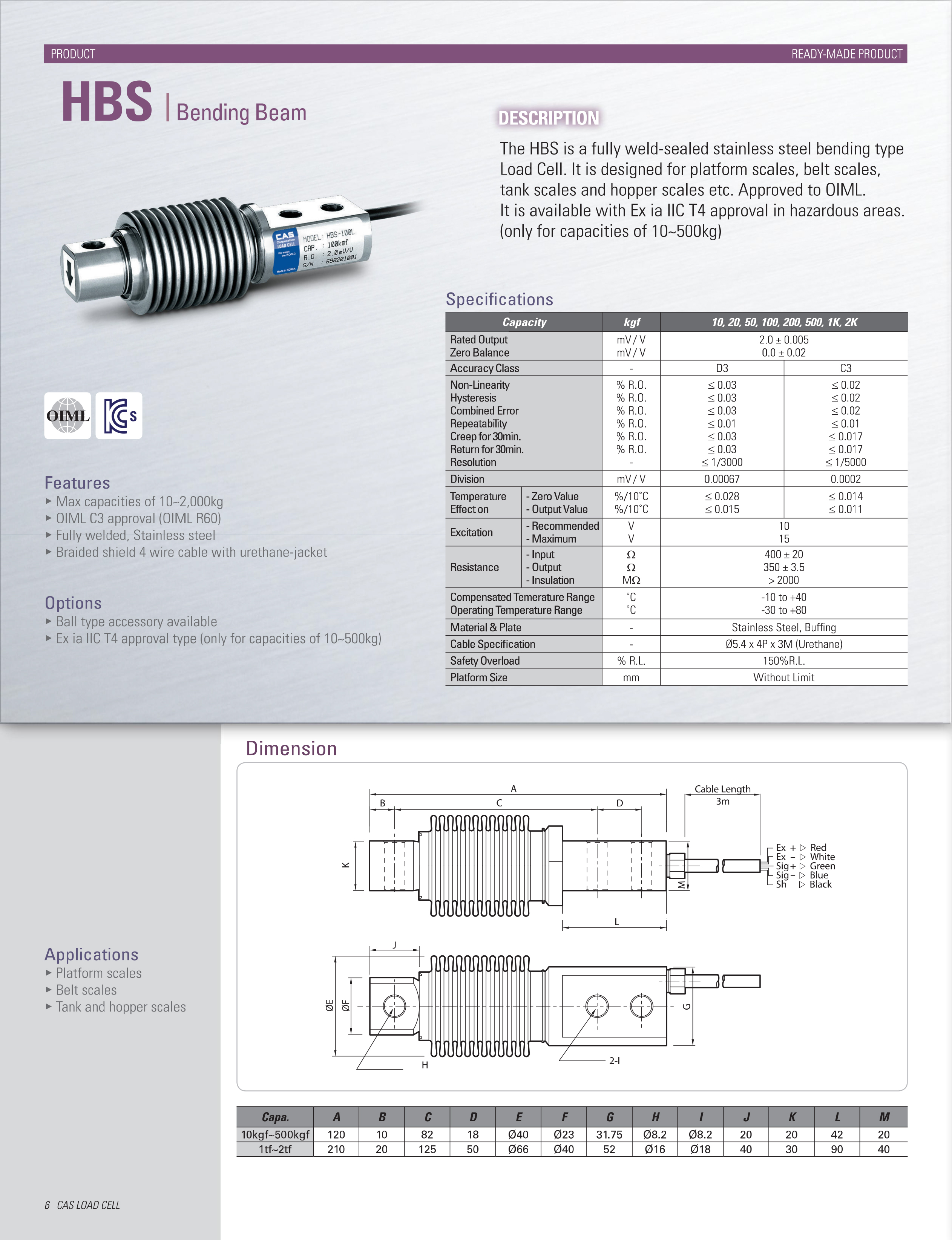

Loadcell CAS HBS
Max capacites of 10 ~ 2.000kgf
OIML C3 approved (OIML R60)
Fully welded, Stainless steel
Braided shield 4 wire cable urethane-jacket
| Model | HBS | ||
| Rated Capacity (kgf) | 10, 20, 30, 50, 100, 200, 300, 500, 1tf, 2tf | ||
| Accuracy Class | D3 | C3 | |
| Combined Error (% R.O) | ≤ 0.03 | ≤ 0.02 | |
| Creep for 30 min (% R.O) | ≤ 0.03 | ≤ 0.017 | |
| Excitation | Recommended (V) | 10 | |
| Maximum (V) | 15 | ||
| Compensated Temperature Range (0C) | -10 ~ +40 | ||
| Operating Temperature Range (0C) | -30 ~ +80 | ||
| Material & plate | Stainless steel | ||
