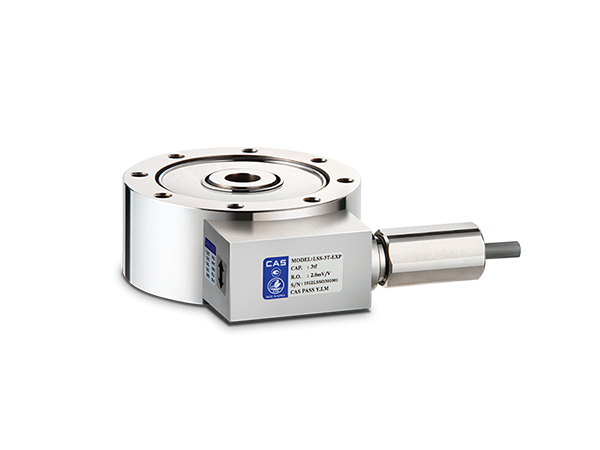

Loadcell CAS LSS-EXP
– Tension/Compression type
– Stainless steel
– Enclosed structure
– Explosion-proof structure (intrinsically safe, pressure resistance, dust- proof)
– Designed in accordance with IP68 standard
Optional specification
– Tension type accessories (rod end bearing type)
– Compression type accessories (rod button, ball type)
– LSS-EXP/Intrinsically safe and explosion-proof (Ex ia IIC T4)
– LSS-EXP-D/pressure resistance and explosion proof (Ex d IIC T4)
– LSS-EXP-TD/dust and explosion-proof (Ex tD A21 T135 ℃ IP68)
| Model | LSS-EXP | |
| Rated Capacity (tf) | 1, 2, 3, 5, 10, 20, 30, 50 | |
| Rated output | 2.0 ± 0.005 | |
| Zero Balance | 0.0 ± 0.02 | |
| Accuracy Class | – | |
| Non-Linearity %RO | 0.03 | |
| Hysteresis %RO | 0.03 | |
| Combiner Error %RO | 0.03 | |
| Repeatability %RO | 0.02 | |
| Zero Creep for 30min %RO | 0.03 | |
| Zero Return for 30min %RO | 0.03 | |
| Exploded view | 1/3000 | |
| Value at a glance (mV/V) | 0.00067 | |
| Temperature Effect on %RO/ 100C | Zero Value | 0.03 |
| Output Value | 0.03 | |
| Excitation Voltage | Recommended (V) | 10 |
| Maximum (V) | 28 | |
| Resistance | Input (Ω) | 350 ± 3.5 |
| Output (Ω) | 350 ± 3.5 | |
| Insulation (MΩ) | > 2.000 | |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -30 ~ +80 | |
| Safety Overload %R.C | 150 | |
| Material | Stainless Steel | |
| Cable Specification | ø 8.0 x 4P x 5m/10m | |
| Platform Size (mm) | No platfrom type | |
