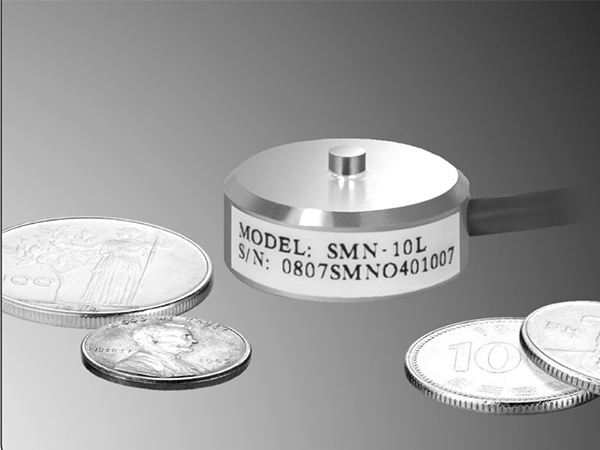

Loadcell CAS SMN
Stainless steel construction
Sub -miniature dimension
Compression application
Low profile
Designed according to IP 65
| Model | SMN | |
| Rated Capacity (kgf) | 10, 20, 50, 100, 200, 300, 500, 1tf, 2tf | |
| Rated output | 1.0 | |
| Zero Balance | 0.0 ± 0.1 | |
| Accuracy Class | – | |
| Non-Linearity %RO | 2.0 | |
| Hysteresis %RO | 2.0 | |
| Combiner Error %RO | 2.0 | |
| Repeatability %RO | 1.0 | |
| Zero Creep for 30min %RO | 1.0 | |
| Zero Return for 30min %RO | 1.0 | |
| Resolution | – | |
| Division (mV/V) | 0.02 | |
| Temperature Effect on %RO/ 100C | Zero Value | 0.03 |
| Output Value | 0.05 | |
| Excitation Voltage | Recommended (V) | 10 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 350 ± 3.5 |
| Output (Ω) | 350 ± 3.5 | |
| Insulation (MΩ) | > 2.000 | |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -40 ~ +70 | |
| Safety Overload %R.C | 150 | |
| Material | Stainless Steel, Aluminum (1kgf ~ 5kgf) | |
| Cable Specification | ø 3 x 4P x 3m | |
| Platform Size (mm) | No platfrom type | |
