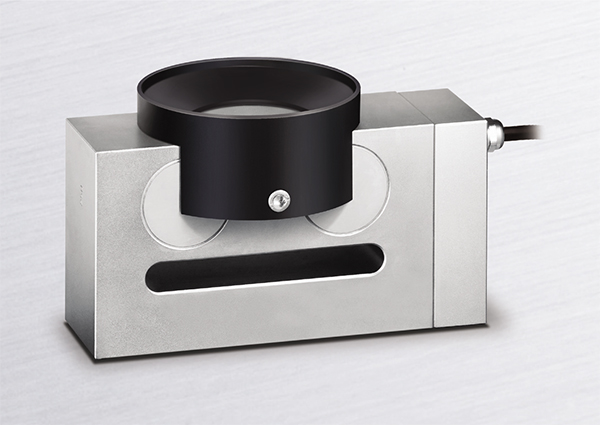

Loadcell CAS DSB-D
Simple installation and effective maintenace
High accuracy
RS-485 digital output
IP 67 protection class
Diagnosis function
Built-in lighting protection
Maximum transmission distance: 1000m
| Model | DSB-D | |
| Rated Capacity (tf) | 10, 20, 25, 30 | |
| Maximum number of verification intervals (n) | 5.000 | |
| Rated output (counts) | 300.000 | |
| Zero Balance (counts) | ± 300 | |
| Non-Linearity %RO | 0.015 | |
| Hysteresis %RO | 0.015 | |
| Combiner Error %RO | 0.015 | |
| Repeatability %RO | 0.01 | |
| Zero Creep for 30min %RO | 0.017 | |
| Temperature %RO/ 100C | Zero Value | 0.014 |
| Effect on %RO/ 100C | Output Value | 0.011 |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -20 ~ +70 | |
| Excitation Voltage | Minimum (V) | 6 |
| Recommended (V) | 9 | |
| Maximum (V) | 24 | |
| Insulation Resistance (MΩ) | 2.000 | |
| Safety Overload %R.C | 150 | |
| Material | Nickel plated steel | |
| Communication | RS-485 (2 wire) | |
| Communication Rate (kbit/sec) | 19.2 | |
| Maximum Transmission Cable Length (m) | 1.000 | |
| Warm-up Time from Cold Start (Minutes) | 15 | |
| Asynchrone Interface Baudrate (Baud) | 9.600 ~ 115.200 | |
| Number of bus addresses | Max 32 | |
