Product Characteristics

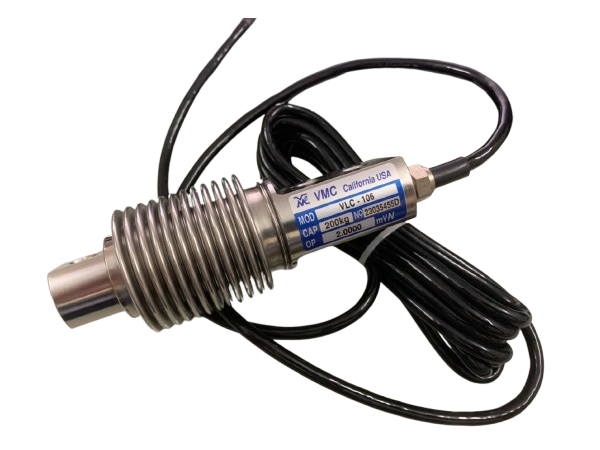

Bending beam loadcell

Metal welded high quality nickel plated loadcell

Excellent capability in anti-errosion, waterproof, moisute-proof

High precision, high stability, high reliability

protection class IP68

Model VLC-106
Rated Capacity (kgf) 10, 20, 30, 50, 100, 200
Accuracy Class
Combined Error (% R.O) ≤ 0.03
Creep for 30 min (% R.O) ≤ 0.03
Excitation Recommended (V) 10
Maximum (V) 15
Compensated Temperature Range (0C) -10 ~ +40
Operating Temperature Range (0C) -20 ~ +60
Material & plate Alloy steel
