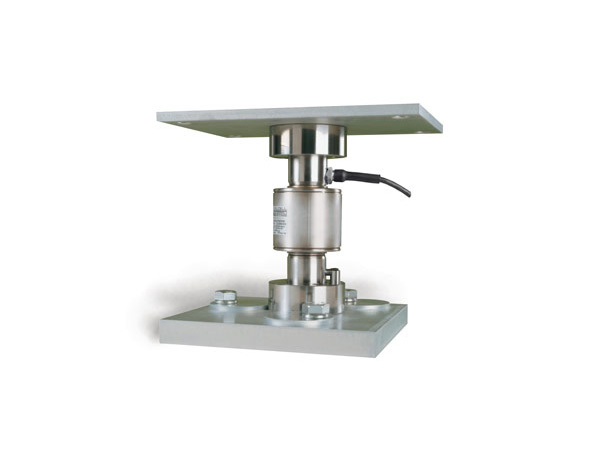

Loadcell UTILCELL 740
Compression load cell, selfcentering column
4000 divisions OIML R60 class C
Available in version (optional)Zone 0-1-2 (gas) and 20-21-22 (dust) Simple to install
Stainless Steel construction
Hermetically welded, protection class IP 68 (EN 60529) and IP 69K (ISO 20653)
Pre-corner adjustment optimized for multicell systems
Lightning protection
Applications: High capacity weighingsystems, truck scales
| Model | 740 | |
| Rated Capacity (tf) | 15, 20, 25, 30, 40, 50, 60 | |
| Accuracy Class | OIML – C3 | |
| Rate Output mV/V | 2.0 | |
| Total error %RO | ± 0.013 | |
| Repeatability %RO | ± 0.01 | |
| Temp. Effect on zero %S/10 0F | ± 0.01 | |
| Temp. Effect on sensitivity %S/10 0F | ± 0.006 | |
| Zero Creep for 30min %RO | ± 0.012 | |
| Minimum dead load % Emin | 0 | |
| Service loadc % Emax | 120 | |
| Safe load limit % Emax | 150 | |
| Excitation Voltage | Recommended (V) | 10 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 800 ± 25 |
| Output (Ω) | 705 ± 5 | |
| Insulation (MΩ) | > 5.000 | |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -30 ~ +70 | |
| Material | Stainlees steel | |
| Cable Specification | ø 6 x 6P x 18m | |
| IP | 68/69k | |
