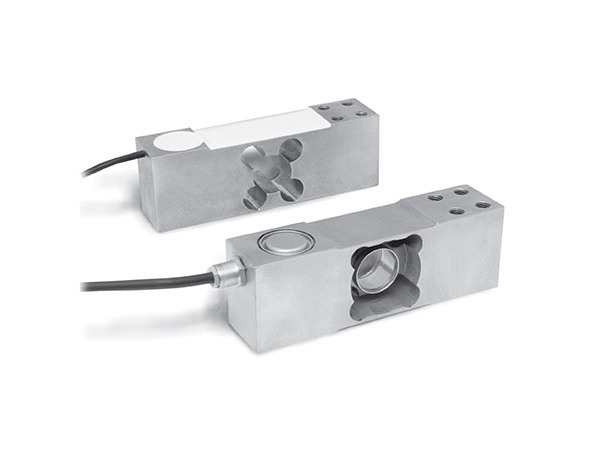

Loadcell UTILCELL 190
Double bending beam load cell
Versions:
– 190a (50…400kg): Nickel-plated Alloy SteelSilicone sealing, IP 66 (EN 60529),4000 divisions OIML R60 class C
– 190i (15…400kg): Fully Stainless Steel constructionHermetically sealed, fully welded, IP 68 (EN 60529)and IP 69K (ISO 20653), 3000 div.OIML R60 class C
High accuracy with off-center loads
Available in version (optional) Zone 0-1-2 (gas) and 20-21-22 (dust)
Applications: direct platforms up to 600 x 600 mm or 800 x 800 mm; filling scales

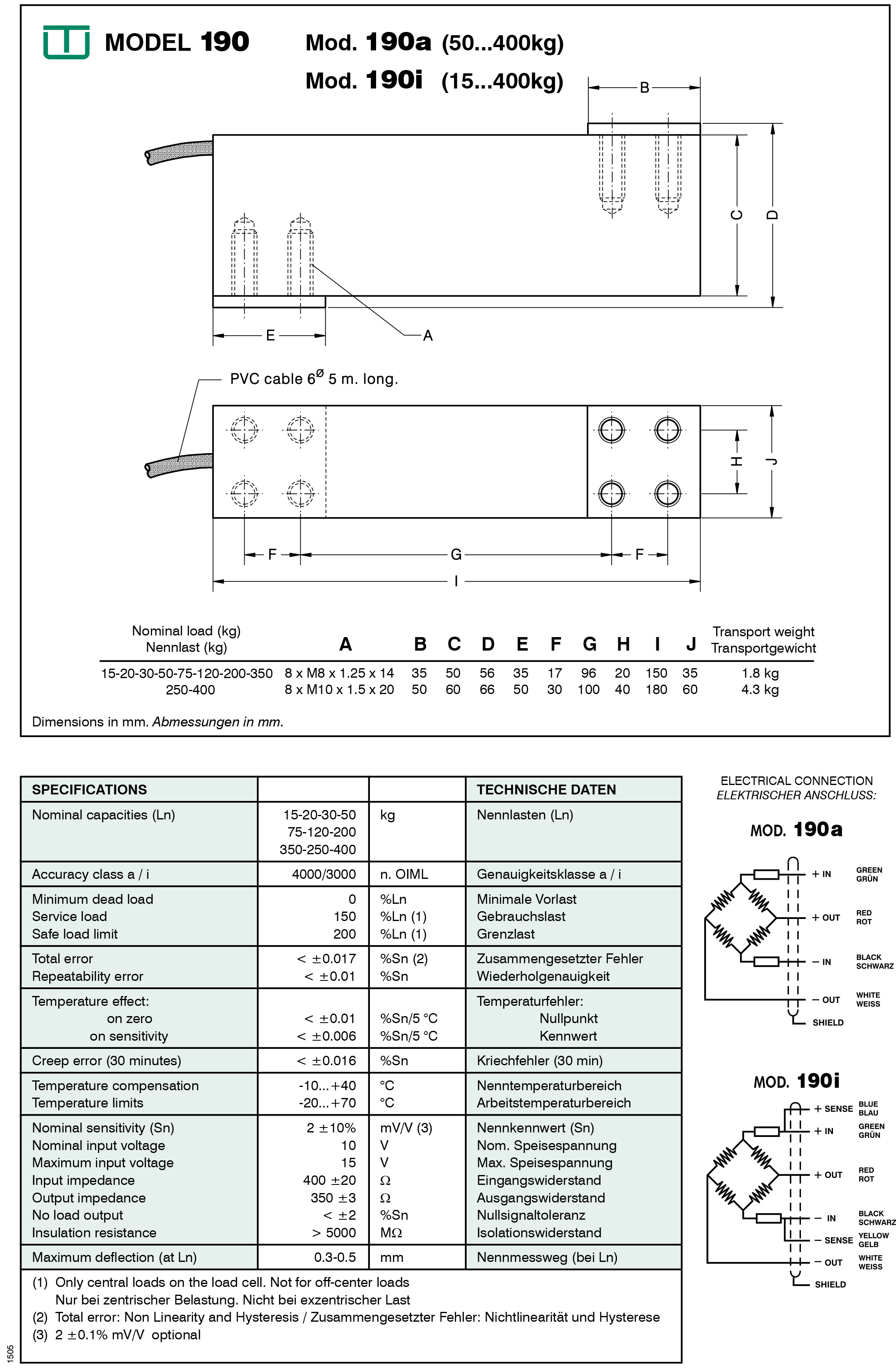

| Model | 190 | |
| Rated Capacity (kgf) | 15, 20, 30, 50, 75, 120, 200, 350, 250, 400 | |
| Accuracy Class | C3 – 3000 | |
| Rate Output mV/V | 2.0 ± 10% | |
| Total error %RO | ± 0.017 | |
| Repeatability %RO | ± 0.01 | |
| Temp. Effect on zero %S/10 0F | ± 0.01 | |
| Temp. Effect on sensitivity %S/10 0F | ± 0.006 | |
| Zero Creep for 30min %RO | ± 0.016 | |
| Minimum dead load % Emin | 0 | |
| Service loadc % Emax | 150 | |
| Safe load limit % Emax | 200 | |
| Excitation Voltage | Recommended (V) | 10 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 400 ± 20 |
| Output (Ω) | 350 ± 3 | |
| Insulation (MΩ) | > 5.000 | |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -20 ~ +70 | |
| Material | Stainless steel – Nickel plated alloy steel | |
| Cable Specification | ø 6 x 6P x 5m | |
| IP | 66/68/69k | |
