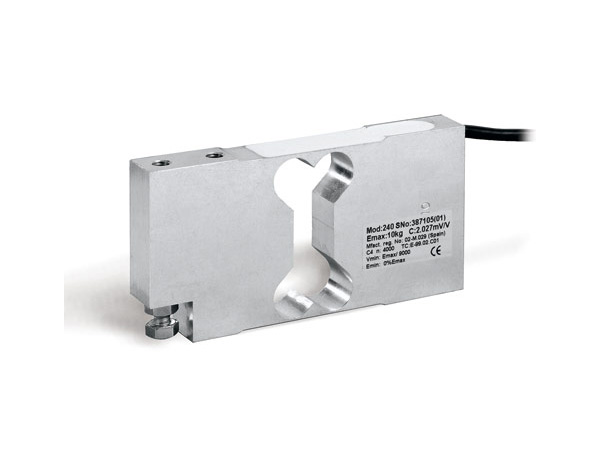

Loadcell UTILCELL 240
Double bending beam load cell
Measuring element from aluminum
4000 divisions OIML R60 class C
Protected IP 66 (EN 60529)
Single point load cell. High accuracy withoff-center loads
Applications:
– Platforms up to 500 x 500 mm
– Check weighers
– Multihead weighers
– Filling scales- Medical scales

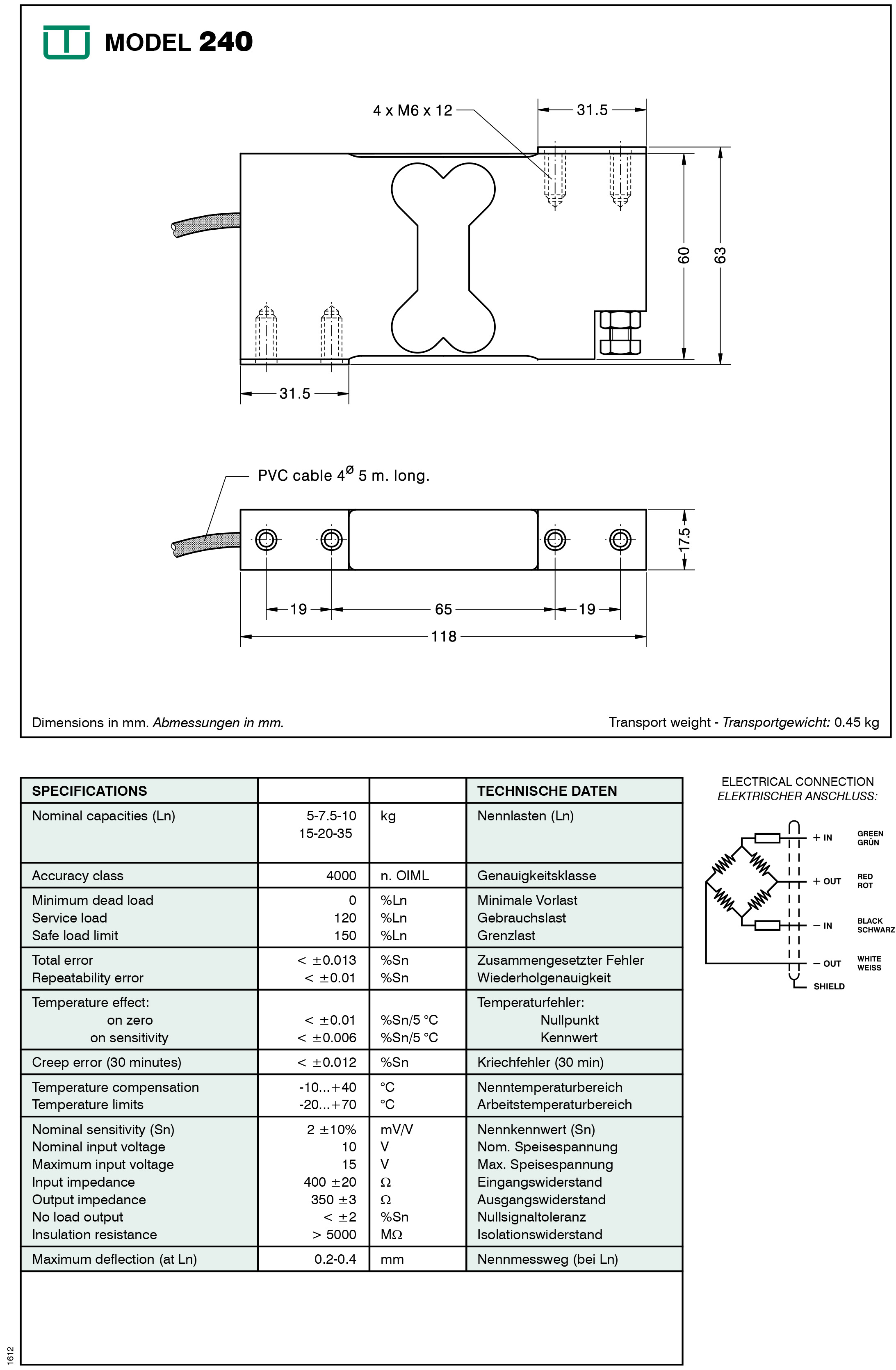

| Model | 240 | |
| Rated Capacity (kgf) | 5, 7.5, 10, 15, 20, 35 | |
| Accuracy Class | C3 – 4000 | |
| Rate Output mV/V | 2.0 ± 10% | |
| Total error %RO | ± 0.013 | |
| Repeatability %RO | ± 0.01 | |
| Temp. Effect on zero %S/10 0F | ± 0.01 | |
| Temp. Effect on sensitivity %S/10 0F | ± 0.006 | |
| Zero Creep for 30min %RO | ± 0.012 | |
| Minimum dead load % Emin | 0 | |
| Service loadc % Emax | 120 | |
| Safe load limit % Emax | 150 | |
| Excitation Voltage | Recommended (V) | 10 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 400 ± 20 |
| Output (Ω) | 350 ± 3 | |
| Insulation (MΩ) | > 5.000 | |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -20 ~ +70 | |
| Material | Aluminum | |
| Cable Specification | ø 4 x 4P x 5m | |
| IP | 66 | |
