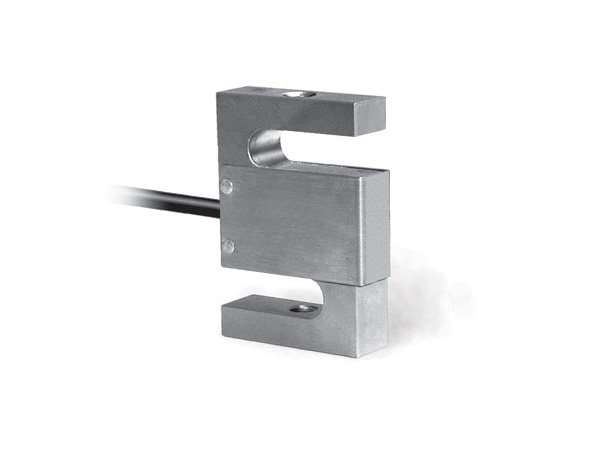

Loadcell UTILCELL 610
Tension/compression load cell
3000 divisions OIML R60 class C
Measuring element from Alloy Steel
Protected IP 67 (EN 60529)
Protected against corrosion by nickel-plated treatment
Applications:
– Suspended weighing in Tanks, Hoppersand Belt Conveyor Scales
– Asphalt and Concrete Plants
– Force measurement in Test Equipment
– Crane scales
| Model | 610 | |
| Rated Capacity (kgf) | 50, 100, 250, 500, 1000 | |
| Accuracy Class | OIML – C3 | |
| Rate Output mV/V | 3.0 ± 0.25% | |
| Total error %RO | ± 0.017 | |
| Repeatability %RO | ± 0.015 | |
| Temp. Effect on zero %S/10 0F | ± 0.01 | |
| Temp. Effect on sensitivity %S/10 0F | ± 0.006 | |
| Zero Creep for 30min %RO | ± 0.016 | |
| Minimum dead load % Emin | 0 | |
| Service loadc % Emax | 150 | |
| Safe load limit % Emax | 300 | |
| Excitation Voltage | Recommended (V) | 10 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 400 ± 20 |
| Output (Ω) | 350 ± 3 | |
| Insulation (MΩ) | > 5.000 | |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -30 ~ +70 | |
| Material | Nickel Plated alloy steel | |
| Cable Specification | ø 4 x 4P x 5m | |
| IP | 67 | |
