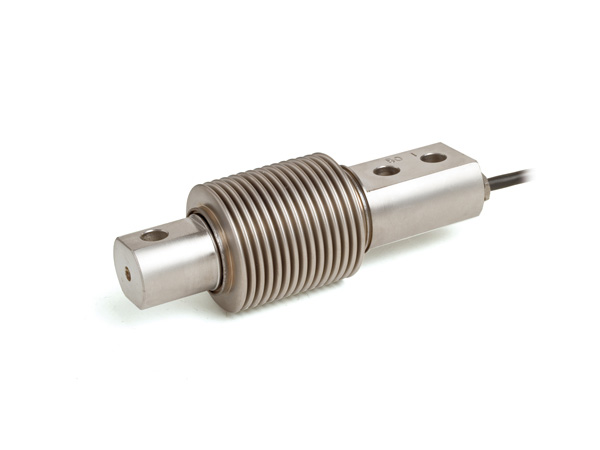

Loadcell UTILCELL 300
Bending beam load cell
Fully Stainless Steel
3000 divisions OIML R60 class C *
Hermetically sealed, fully welded
Protected IP 68 (EN 60529)and IP 69K (ISO 20653)
Available in version (optional) Zone 0-1-2 (gas) and 20-21-22 (dust)

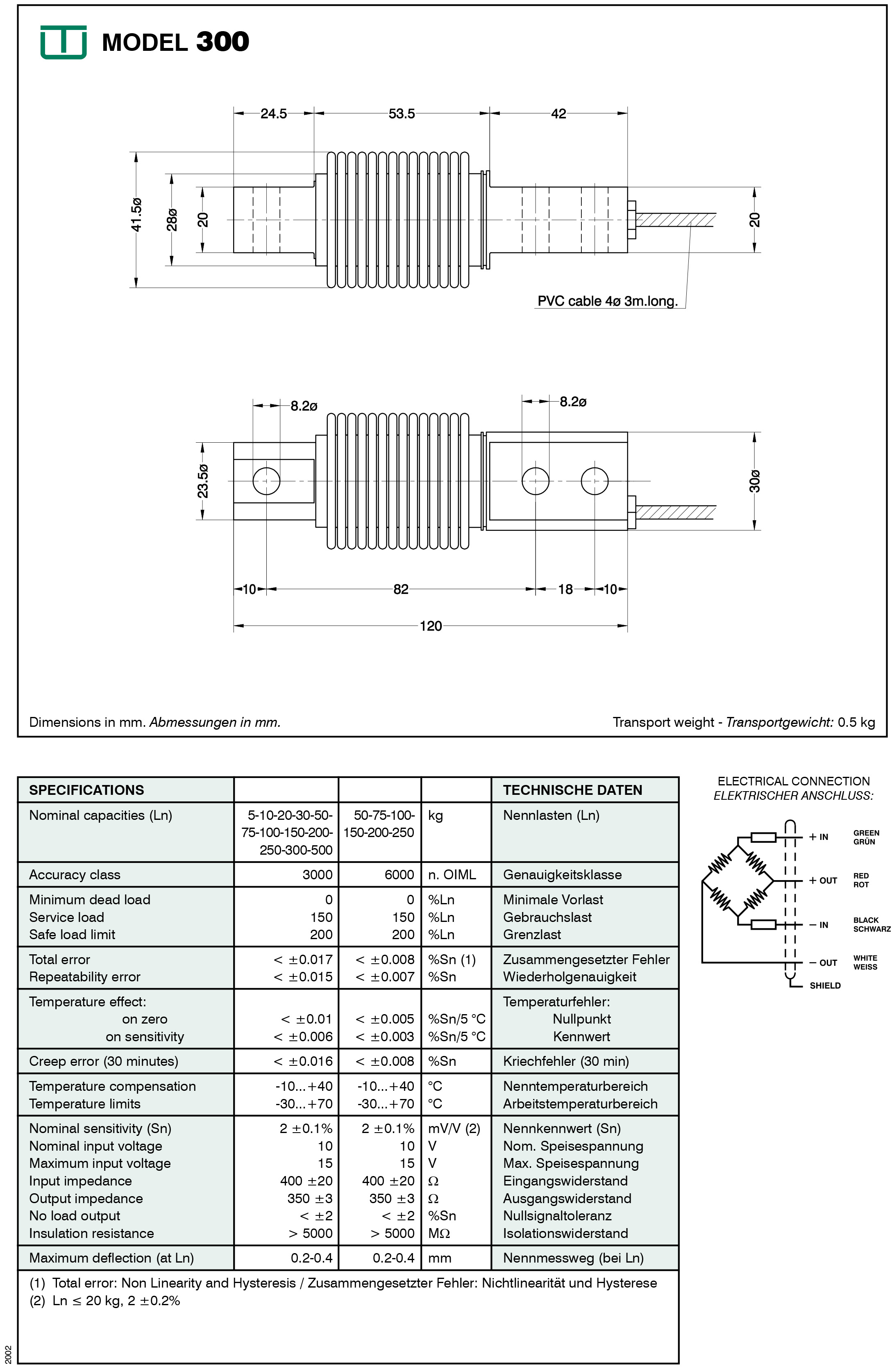

| Model | 300 | |
| Rated Capacity (kgf) | 5, 10, 20, 30, 50, 75, 100, 150, 200, 250, 300, 500 | |
| Accuracy Class | C3 – 3000 | |
| Rate Output mV/V | 2.0 ± 0.1% | |
| Total error %RO | ± 0.017 | |
| Repeatability %RO | ± 0.015 | |
| Temp. Effect on zero %S/10 0F | ± 0.01 | |
| Temp. Effect on sensitivity %S/10 0F | ± 0.006 | |
| Zero Creep for 30min %RO | ± 0.016 | |
| Minimum dead load % Emin | 0 | |
| Service loadc % Emax | 150 | |
| Safe load limit % Emax | 200 | |
| Excitation Voltage | Recommended (V) | 10 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 400 ± 20 |
| Output (Ω) | 350 ± 3 | |
| Insulation (MΩ) | > 5.000 | |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -30 ~ +70 | |
| Material | Stainless steel | |
| Cable Specification | ø 4 x 4P x 3m | |
| IP | 68/69k | |
