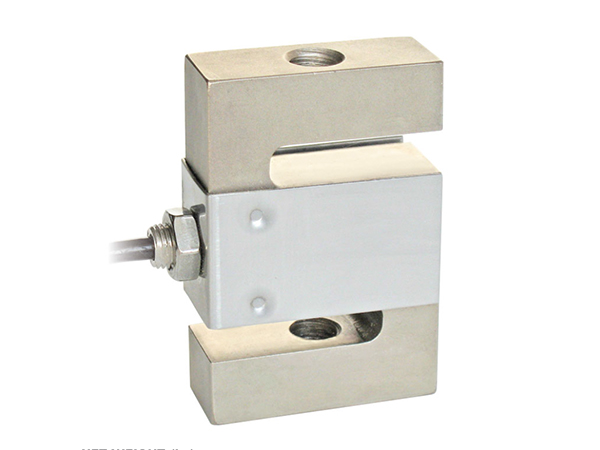

Loadcell LAUMAS SL
Được sản xuất theo tiêu chuẩn C3 precision class
Thiết kế theo tiêu chuẩn: IP 67
Vật liệu : Nickel plated steel
| Model | SL | |
| Rated Capacity (kgf) | 100, 200, 300, 500, 1, 2.5tf | |
| Rated output (mV/V) | 2 ± 0.1% | |
| Insulation Resistance (mΩ) | 5000 | |
| V min | E max 10000 | |
| Combined Error (% FS) | ≤ 0.02 | |
| Creep for 30 min (% FS) | ≤ 0.03 | |
| Excitation | Recommended (V) | 5 |
| Maximum (V) | 18 | |
| Teminal Resistane | Excitation (Ω) | 350 ± 3.5 |
| Output (Ω) | 350 ± 3.5 | |
| Compensated Temperature Range (0C) | -10 ~ +70 | |
| Operating Temperature Range (0C) | -35 ~ +90 | |
| Material & plate | Nickel plated steel | |
| Cable | 4-wire shielded cable, 5m long, 5mm | |
