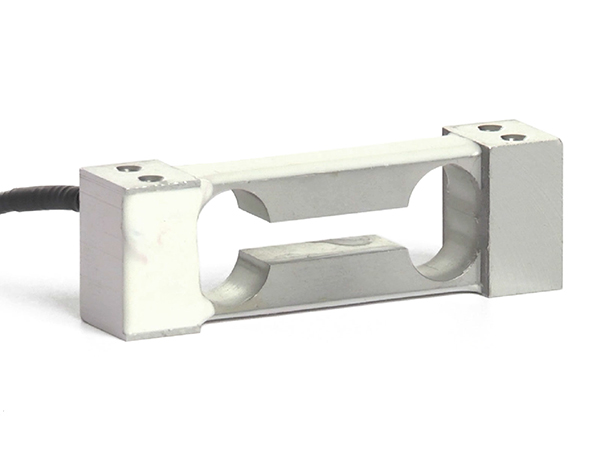

Loadcell LAUMAS AS
Được sản xuất theo tiêu chuẩn C3 precision class
Thiết kế theo tiêu chuẩn: IP 65
Vật liệu : Aluminum alloy
Sàn cân tối đa: 200 x 200 mm
| Model | AS | |
| Rated Capacity (kgf) | 0.25, 0.5, 1 | |
| Rated output (mV/V) | 1 ± 15% | |
| Insulation Resistance (mΩ) | 2000 | |
| Combined Error (% FS) | ≤ 0.03 | |
| Creep for 30 min (% FS) | ≤ 0.03 | |
| Excitation | Recommended (V) | 5 |
| Maximum (V) | 15 | |
| Teminal Resistane | Excitation (Ω) | 410 ± 10 |
| Output (Ω) | 350 ± 3 | |
| Compensated Temperature Range (0C) | -10 ~ +40 | |
| Operating Temperature Range (0C) | -20 ~ +60 | |
| Material & plate | Aluminum alloy | |
| Cable | 4-wire shielded cable, 3m long, 2.5mm | |
