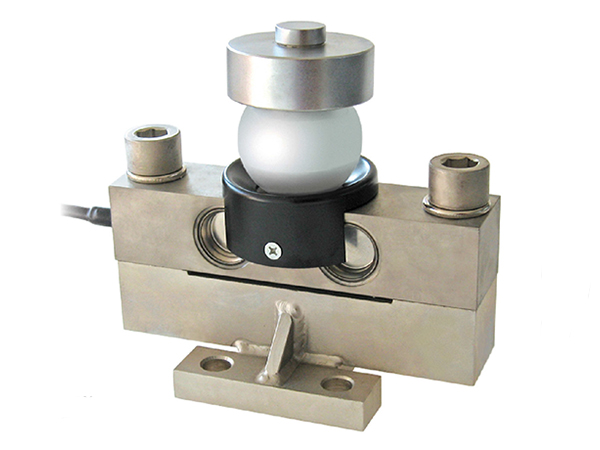

Loadcell LAUMAS DTL
Được sản xuất theo tiêu chuẩn C3 precision class
Thiết kế theo tiêu chuẩn: IP 68
Vật liệu : Nickel plated steel

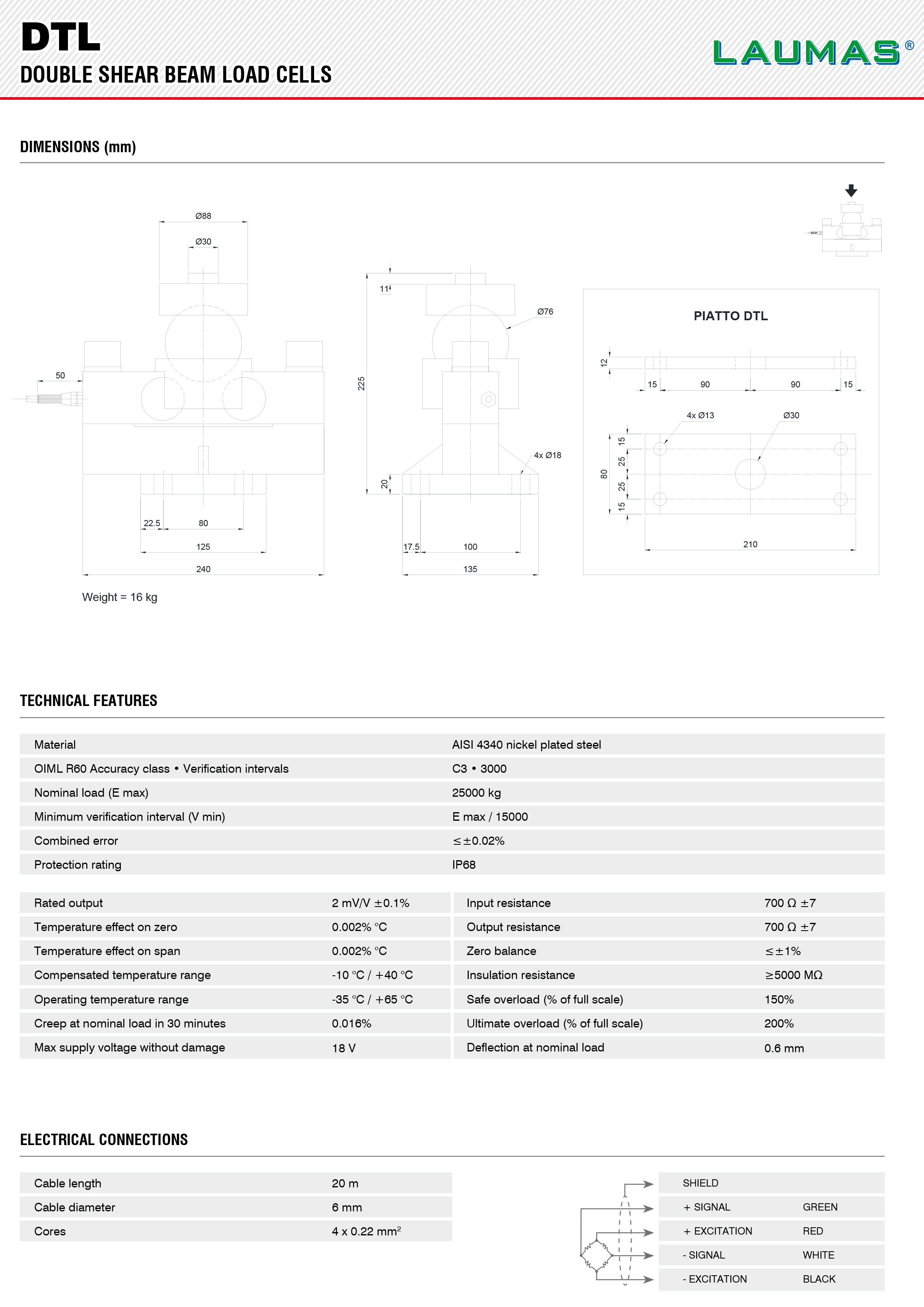

| Model | DTL | |
| Rated Capacity (tf) | 25 | |
| Rated output (mV/V) | 2 ± 0.1% | |
| Vmin | E max/ 15000 | |
| Insulation Resistance (mΩ) | 5000 | |
| Combined Error (% FS) | ≤ 0.02 | |
| Creep for 30 min (% FS) | ≤ 0.016 | |
| Excitation | Recommended (V) | 5 |
| Maximum (V) | 18 | |
| Teminal Resistane | Excitation (Ω) | 700 ± 7 |
| Output (Ω) | 700 ± 7 | |
| Compensated Temperature Range (0C) | -10 ~ +40 | |
| Operating Temperature Range (0C) | -35 ~ +65 | |
| Material & plate | Nickel plated steel | |
| Cable | 6-wire shielded cable, 20m long, 6mm | |
