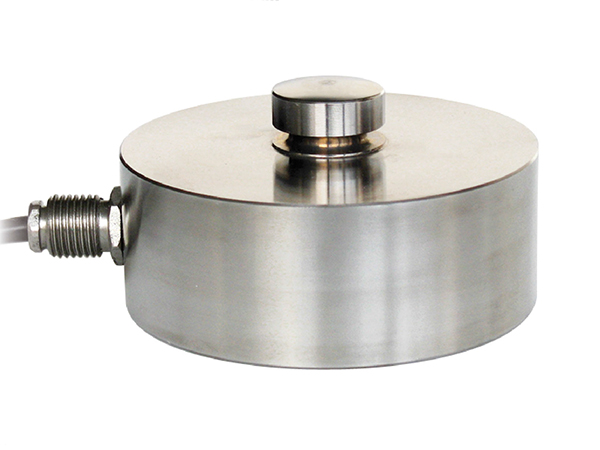

Loadcell LAUMAS CBL
Được sản xuất theo tiêu chuẩn C3 precision class
Thiết kế theo tiêu chuẩn: IP 68
Vật liệu : Stainless steel
| Model | CBL | |
| Rated Capacity (tf) | 2.5, 5, 7.5, 10, 12.5 | |
| Rated output (mV/V) | 2 ± 0.1% | |
| Vmin | E max/ 15000 | |
| Insulation Resistance (mΩ) | 10000 | |
| Combined Error (% FS) | ≤ 0.02 | |
| Creep for 30 min (% FS) | ≤ 0.03 | |
| Excitation | Recommended (V) | 5 |
| Maximum (V) | 15 | |
| Teminal Resistane | Excitation (Ω) | 700 ± 10 |
| Output (Ω) | 700 ± 10 | |
| Compensated Temperature Range (0C) | -20 ~ +70 | |
| Operating Temperature Range (0C) | -30 ~ +90 | |
| Material & plate | Stainless steel | |
| Cable | 6-wire shielded cable, 5m long, 5mm | |
