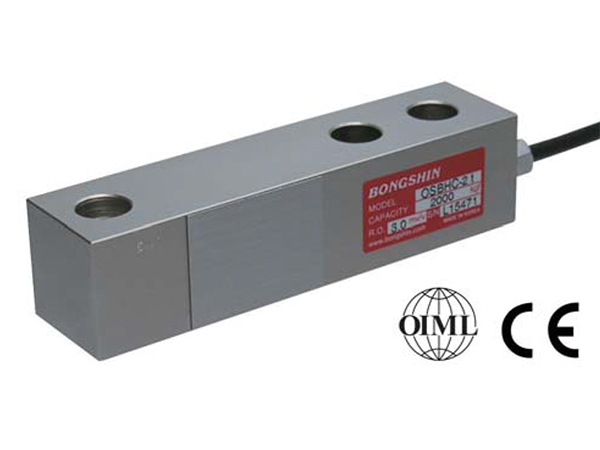

Loadcell BONGSHIN OSBH
The OSBH series single ended shear beam load cell is designed for high accuracy platform scales and a variety of process weighing applications.
– Alloy tool steel construction for high accuracy.
– Electroless nickel plated for corrosion resistance.
– Fully sealded to IP67.
| Model | OSBHA – OSBAB – OSHBC – OSBHG | |
| Rated Capacity (kg) | 200, 500kg, 1, 2, 3, 5, 10tf | |
| Rated output (mV/V) | 3 ± 0.25% | |
| Non-linearity (R.O) | ≤ 0.03% | |
| Hysteresis (R.O) | ≤ 0.02% | |
| Non-Repeatability (R.O) | ≤ 0.02% | |
| Creep error | ≤ 0.03% in 20min | |
| Zero Balance (R.O) | ≤ 5% | |
| Excitation | Recommended (V) | 10 |
| Maximum (V) | 15 | |
| Teminal Resistane | Excitation (Ω) | 400 ± 20 |
| Output (Ω) | 350 ± 5 | |
| Compensated Temperature Range (0C) | -10 ~ +70 | |
| Operating Temperature Range (0C) | -20 ~ +80 | |
| Cable | 200kg ~ 2tf | 4-wire shielded cable, 3m long, 5mm |
| 3tf ~ 10tf | 4-wire shielded cable, 6m long, 5mm | |
| Material & plate | Alloy Steel |
