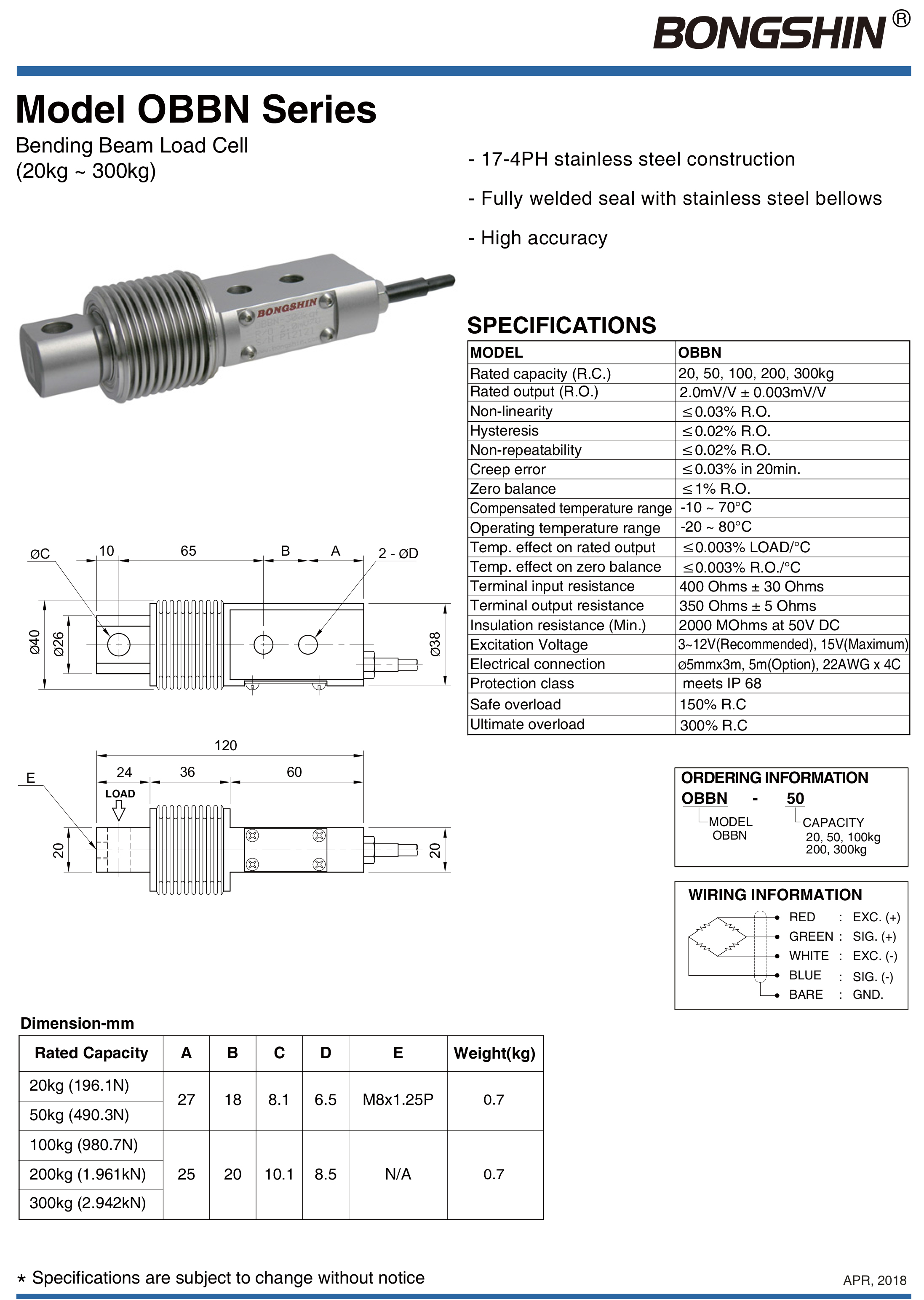

Loadcell BONGSHIN OBBN
– 17- 4PH Stainless steel construction
– High accuracy and corrosion resistance.
– Fully welded seal with stainless steel bellows
| Model | OBBN | |
| Rated Capacity (kgf) | 20, 50, 100, 200, 500 | |
| Rated output (mV/V) | 2 ± 0.2% | |
| Non-linearity (R.O) | ≤ 0.03% | |
| Hysteresis (R.O) | ≤ 0.02% | |
| Non-Repeatability (R.O) | ≤ 0.02% | |
| Creep error | ≤ 0.03% in 20min | |
| Zero Balance (R.O) | ≤ 1% | |
| Excitation | Recommended (V) | 3 ~ 12 |
| Maximum (V) | 15 | |
| Teminal Resistane | Excitation (Ω) | 400 ± 30 |
| Output (Ω) | 350 ± 5 | |
| Compensated Temperature Range (0C) | -10 ~ +70 | |
| Operating Temperature Range (0C) | -20 ~ +80 | |
| Material & plate | Stainless Steel | |
| Cable | 4-wire shielded cable, 3m long, 5mm | |
