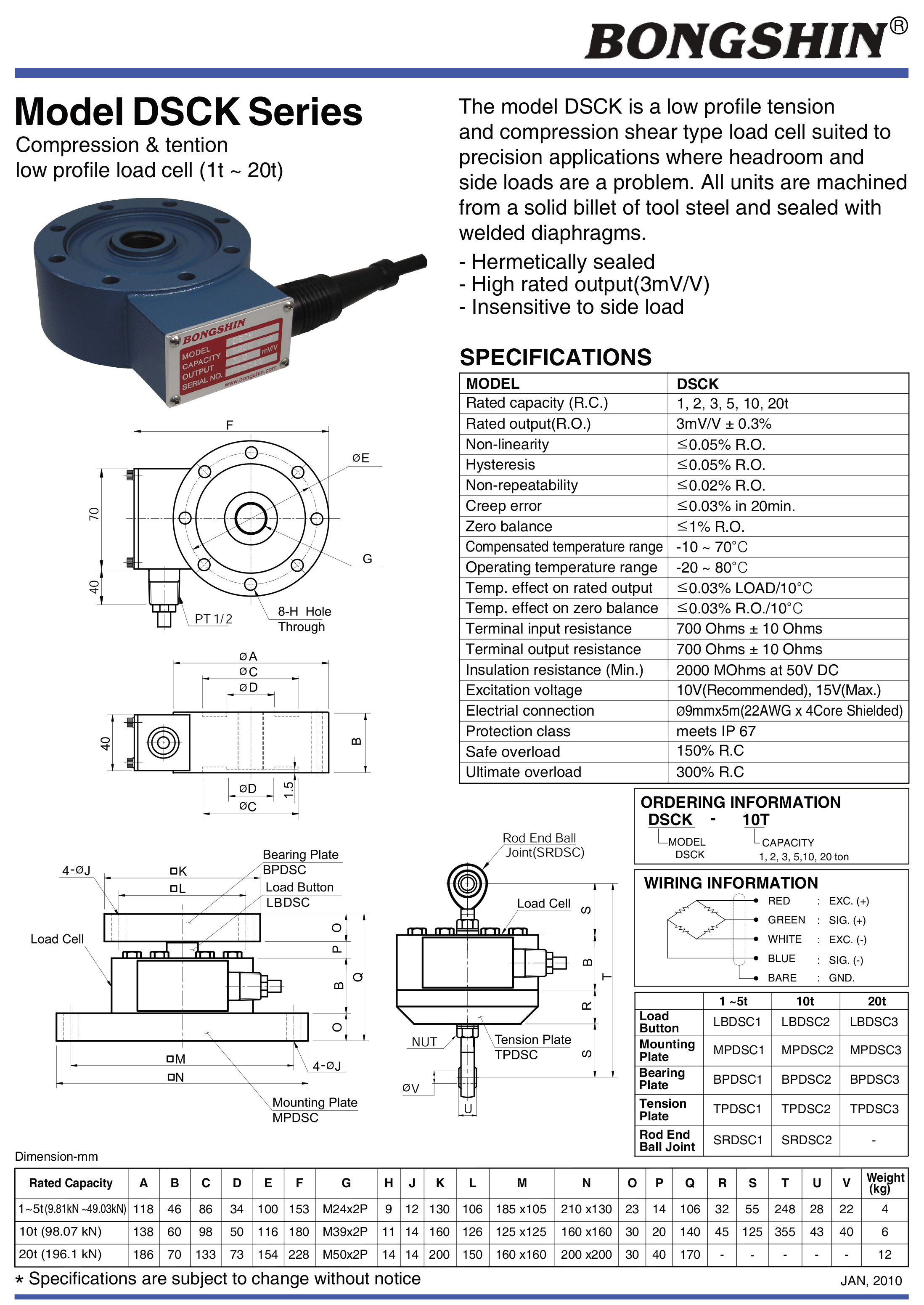

Loadcell BONGSHIN DSCK
The model DSCK is a low profile tension and compression shear type load cell suited to precision applications where headroom and side loads are a problem. All units are machined from a solid billet of tool steel and sealed with welded diaphragms.
– Hermetically sealed
– High rated output(3mV/V)
– Insensitive to side load
| Model | DSCK | |
| Rated Capacity (tf) | 1, 2, 3, 5, 10, 20 | |
| Rated output (mV/V) | 3 ± 0.3% | |
| Non-linearity (R.O) | ≤ 0.05% | |
| Hysteresis (R.O) | ≤ 0.05% | |
| Non-Repeatability (R.O) | ≤ 0.02% | |
| Creep error | ≤ 0.03% in 20min | |
| Zero Balance (R.O) | ≤ 1% | |
| Excitation | Recommended (V) | 10 |
| Maximum (V) | 15 | |
| Teminal Resistane | Excitation (Ω) | 700 ± 10 |
| Output (Ω) | 700 ± 10 | |
| Compensated Temperature Range (0C) | -10 ~ +70 | |
| Operating Temperature Range (0C) | -20 ~ +80 | |
| Material & plate | Painted Steel | |
| Cable | 4-wire shielded cable, 5 m long, 9 mm | |
