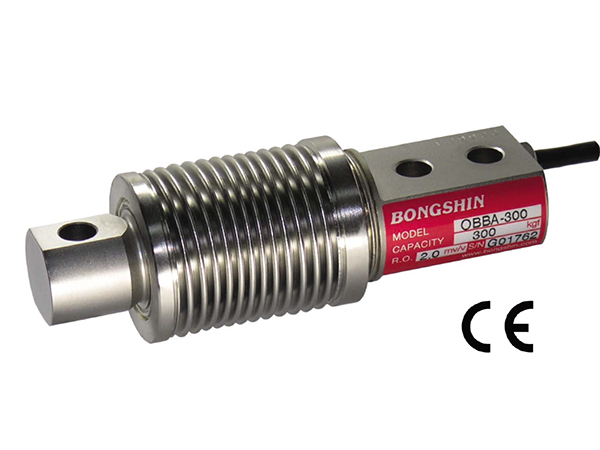

Loadcell BONGSHIN OBBA
The OBBA series single ended bending beamload cell is designed for tension or compression loading applications including hopper scale andconveyor weighing.
– 17- 4PH stainless steel construction for highaccuracy and corrosion resistance.
– Fully welded seal with stainless steel bellowsfor hostile environments and washdownapplications.
| Model | OBBA | |
| Rated Capacity (kgf) | 10, 20, 50, 100, 200, 300 | |
| Rated output (mV/V) | 2 ± 0.2% | |
| Non-linearity (R.O) | ≤ 0.03% | |
| Hysteresis (R.O) | ≤ 0.02% | |
| Non-Repeatability (R.O) | ≤ 0.02% | |
| Creep error | ≤ 0.03% in 20min | |
| Zero Balance (R.O) | ≤ 1% | |
| Excitation | Recommended (V) | 10 |
| Maximum (V) | 15 | |
| Teminal Resistane | Excitation (Ω) | 400 ± 30 |
| Output (Ω) | 350 ± 5 | |
| Compensated Temperature Range (0C) | -10 ~ +70 | |
| Operating Temperature Range (0C) | -20 ~ +80 | |
| Material & plate | Stainless Steel | |
| Cable | 4-wire shielded cable, 3m long, 5mm | |
