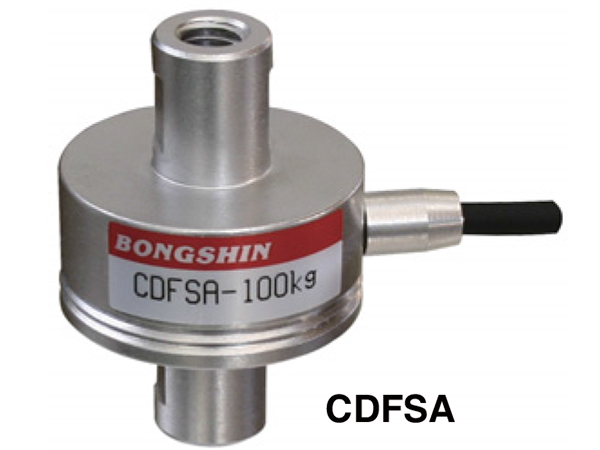

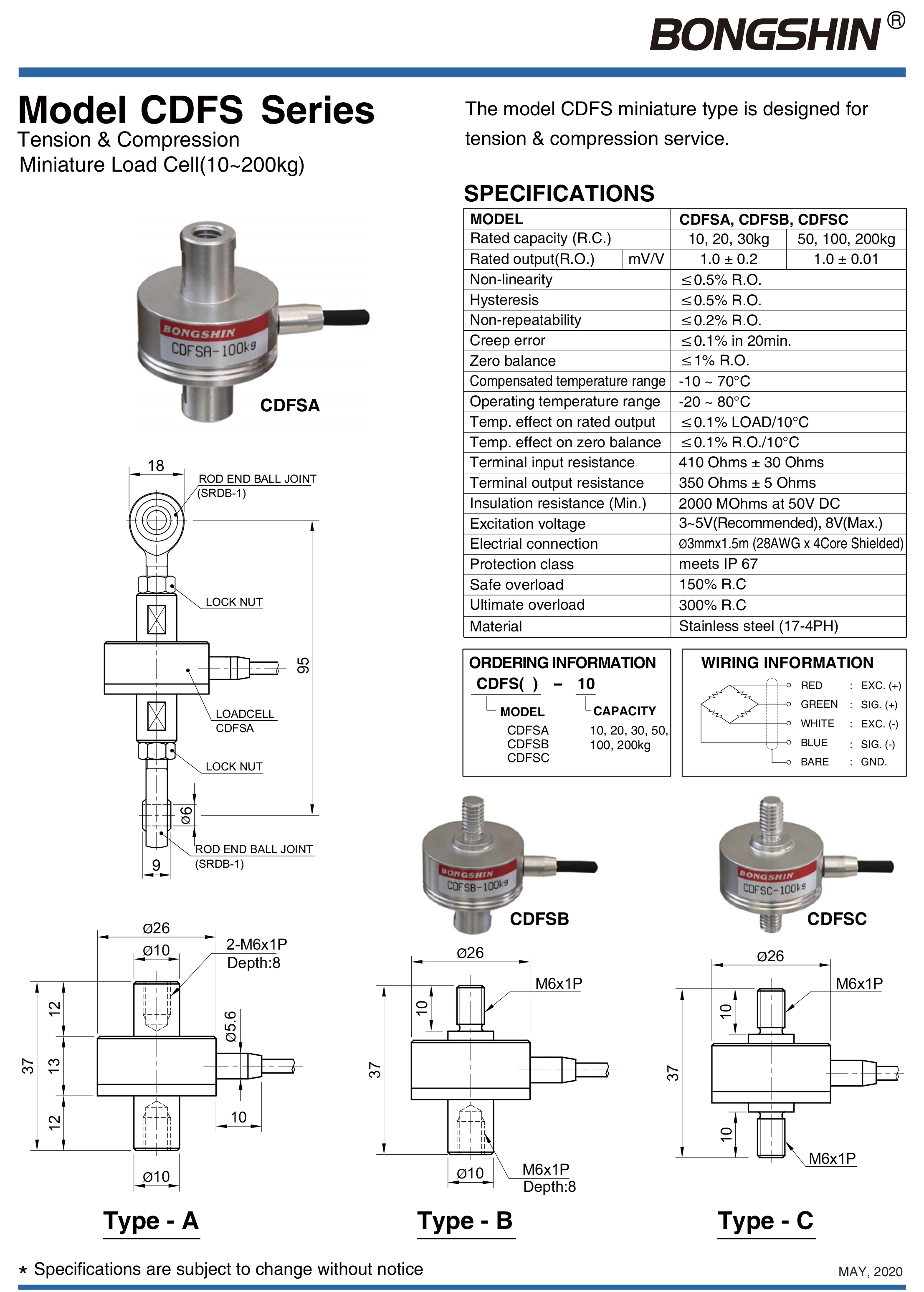

Loadcell BONGSHIN CDFS
The model CDFS miniature type is designed for tension & compression service.
| Model | CDFSA – CDFSB – CDFSC | |
| Rated Capacity (Tf) | 10, 20, 30 – 50, 100, 200 | |
| Rated output (mV/V) | 1 ± 0.2% – 1.0 ± 0.01 | |
| Non-linearity (R.O) | ≤ 0.5% | |
| Hysteresis (R.O) | ≤ 0.5% | |
| Non-Repeatability (R.O) | ≤ 0.2% | |
| Creep error | ≤ 0.1% in 20min | |
| Zero Balance (R.O) | ≤ 1% | |
| Excitation | Recommended (V) | 3 ~ 5 |
| Maximum (V) | 8 | |
| Teminal Resistane | Excitation (Ω) | 410 ± 30 |
| Output (Ω) | 350 ± 5 | |
| Compensated Temperature Range (0C) | -10 ~ +70 | |
| Operating Temperature Range (0C) | -20 ~ +80 | |
| Material & plate | Painted Steel | |
| Cable | 4-wire shielded cable, 1.5 m long, 3 mm | |
