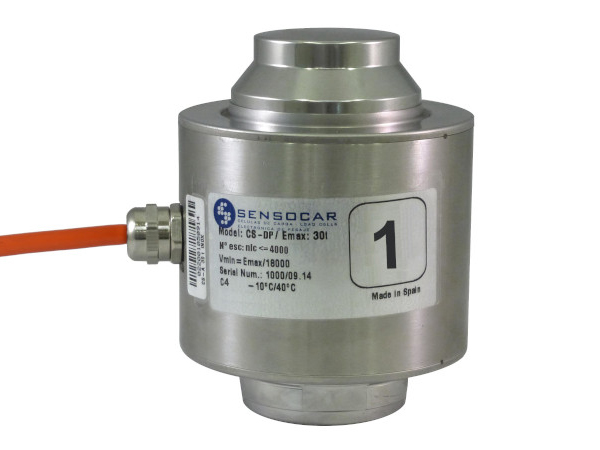

Loadcell SENSOCAR CS-DP
Được sản xuất theo tiêu chuẩn OIML R60
Thiết kế theo tiêu chuẩn: IP 69
Vật liệu Stainless steel
| Model | CS-DP | |
| Rated Capacity (tf) | 10, 15, 20, 25, 30, 35, 40, 50 | |
| Rated output (mV/V) | 2 ± 0.1% | |
| Internal resolution | 24 bits | |
| Transmission speed | 100 kHz (Max) | |
| Conversions per second | 40 s-1 | |
| Excitation | Recommended (V) | 8 |
| Maximum (V) | 15 | |
| Teminal Resistane | Excitation (Ω) | 570 ± 3 |
| Consumption (mA) | 35 | |
| Compensated Temperature Range (0C) | -10 ~ +40 | |
| Operating Temperature Range (0C) | -40 ~ +80 | |
| Material & plate | Stainless steel | |
