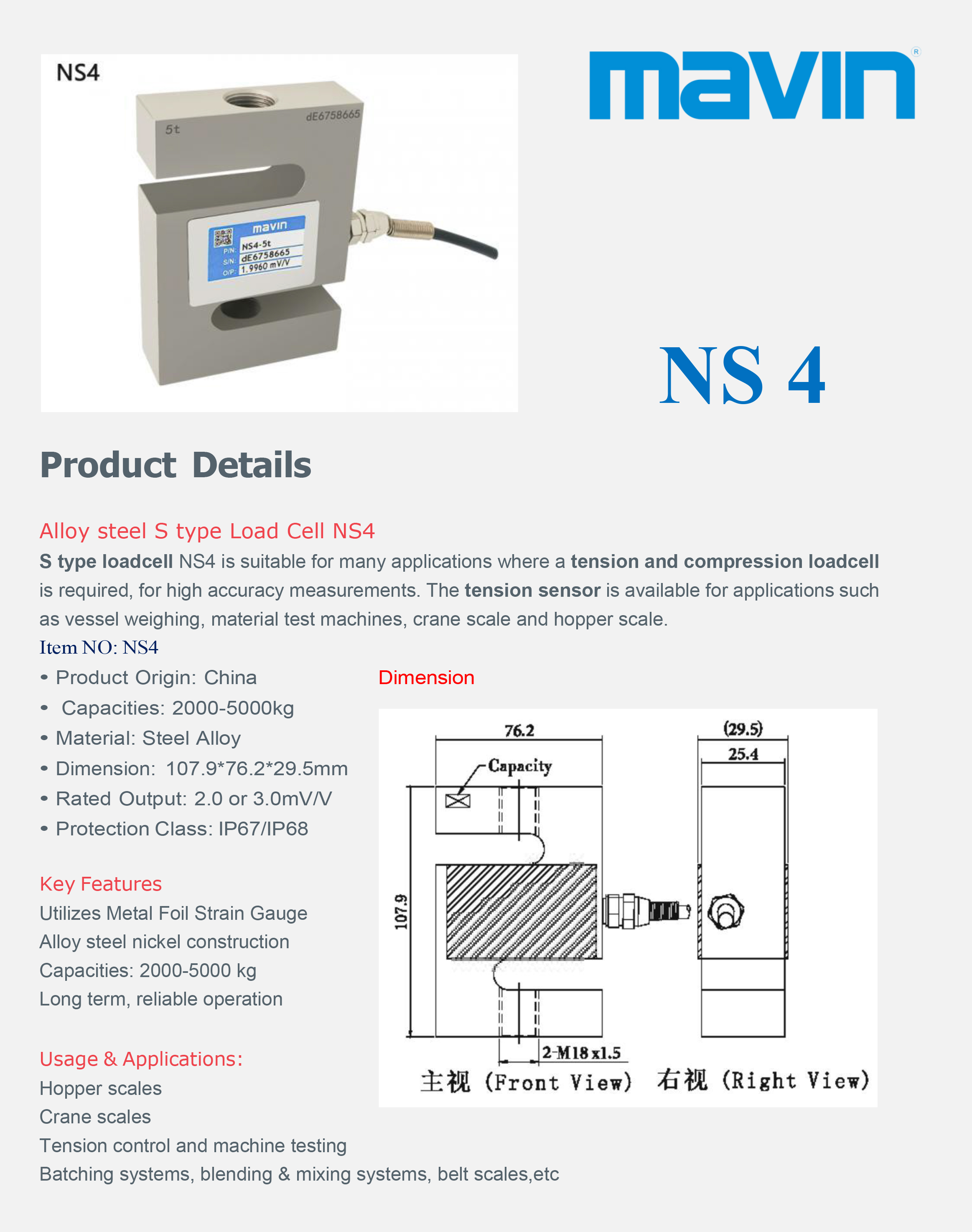

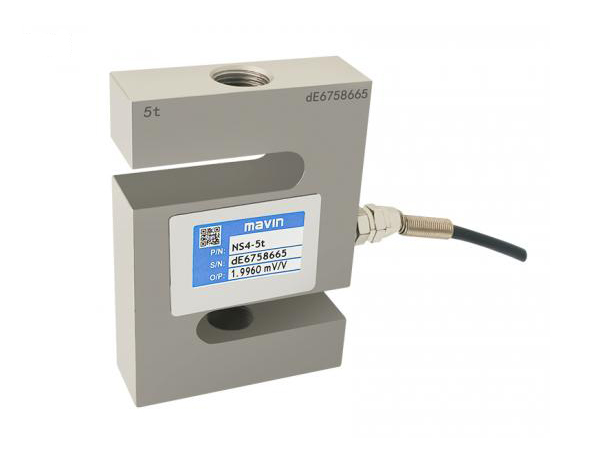

Loadcell MAVIN NS4
• Utilizes Metal Foil Strain Gauge
• Alloy steel nickel construction
• Capacities: 2000-5000 kg
• Long term, reliable operation
| Model | NS4 | |
| Rated Capacity (kgf) | 2000, 2500, 3000, 5000 | |
| Accuracy Class According to OIML-R-60 | OIML | |
| Max. Number of Verification Intervals | 3.000 – OIML | |
| Rate Output mV/V | 2.0 ± 0.25% – 3.0 ± 0.25% | |
| Zero Balance mV/V | ± 0.02 | |
| Non-linearity %RO | 0.03 | |
| Hysteresis %RO | 0.03 | |
| Repeatability %RO | 0.03 | |
| 30mins Creep %RO | 0.002 | |
| 30mins Return %RO | 0.003 | |
| Safe OverLoad % Emax | 150 | |
| Ultimate Over Load % Emax | 200 | |
| Excitation Voltage | Recommended (V) | 5 ~ 12 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 390 ± 15 |
| Output (Ω) | 350 ± 5 | |
| Insulation (MΩ) | > 5.000 | |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -20 ~ +60 | |
| Material | Steel Alloy | |
| Cable Specification | ø 5.0 x 4P x 6.0m | |
| IP | 67/68 | |
