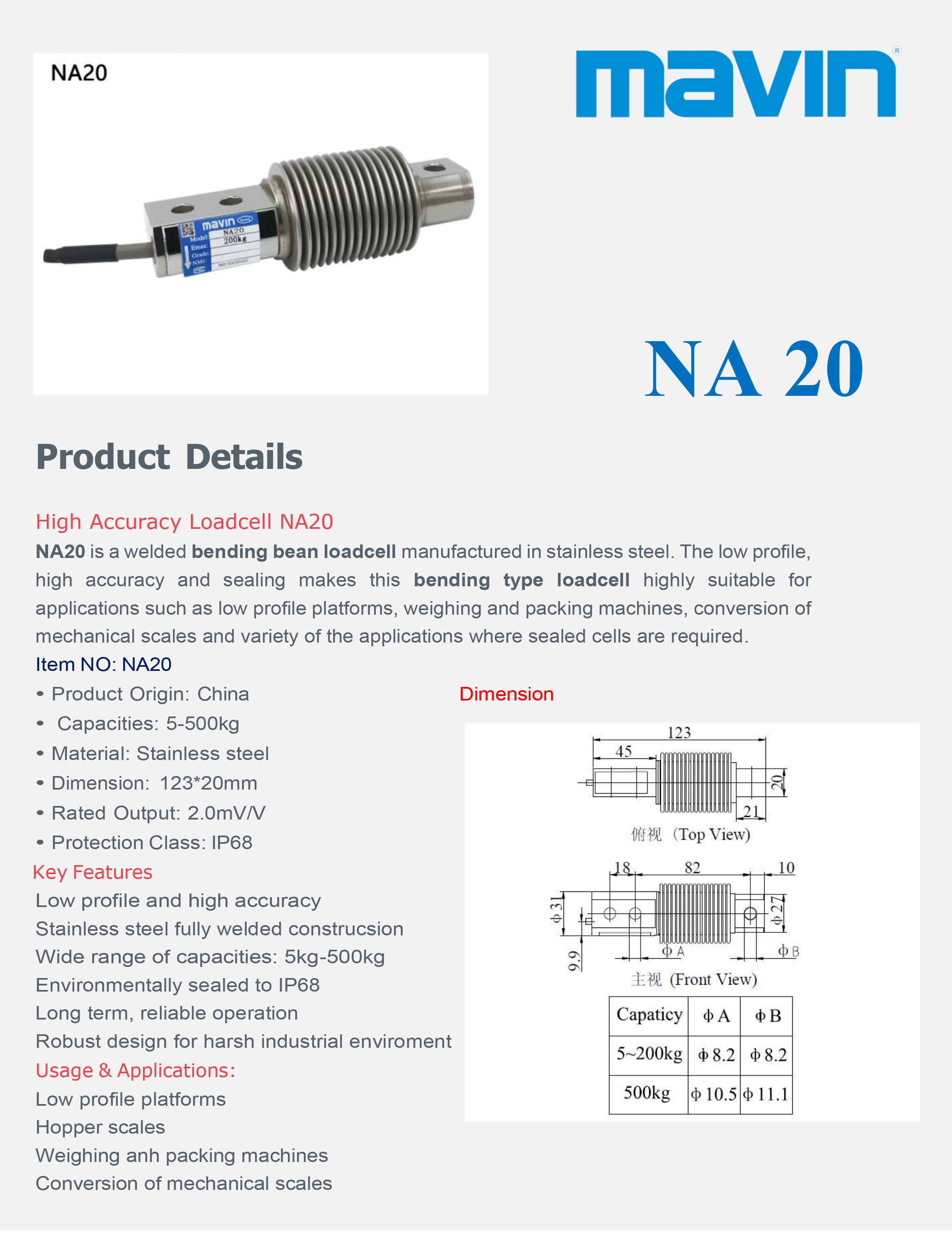

Loadcell MAVIN NA20
• Low profile and high accuracy
• Stainless steel fully welded construcsion
• Wide range of capacities: 5kg-500kg
• Environmentally sealed to IP68
• Long term, reliable operation
• Robust design for harsh industrial enviroment
| Model | NA20 | |
| Rated Capacity (kgf) | 5, 10, 20, 50, 100, 200, 500 | |
| Accuracy Class According to OIML-R-60 | OIML | |
| Max. Number of Verification Intervals | 3.000 – OIML | |
| Rate Output mV/V | 2.0 ± 0.25% | |
| Zero Balance mV/V | ± 0.02 | |
| Non-linearity %RO | 0.02 | |
| Hysteresis %RO | 0.02 | |
| Repeatability %RO | 0.02 | |
| 30mins Creep %RO | 0.002 | |
| 30mins Return %RO | 0.003 | |
| Safe OverLoad % Emax | 150 | |
| Ultimate Over Load % Emax | 200 | |
| Excitation Voltage | Recommended (V) | 5 ~ 12 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 385 ± 15 |
| Output (Ω) | 350 ± 5 | |
| Insulation (MΩ) | > 5.000 | |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -20 ~ +60 | |
| Material | Stainless steel | |
| Cable Specification | ø 5.0 x 4P x 3.0m | |
| IP | 68 | |
