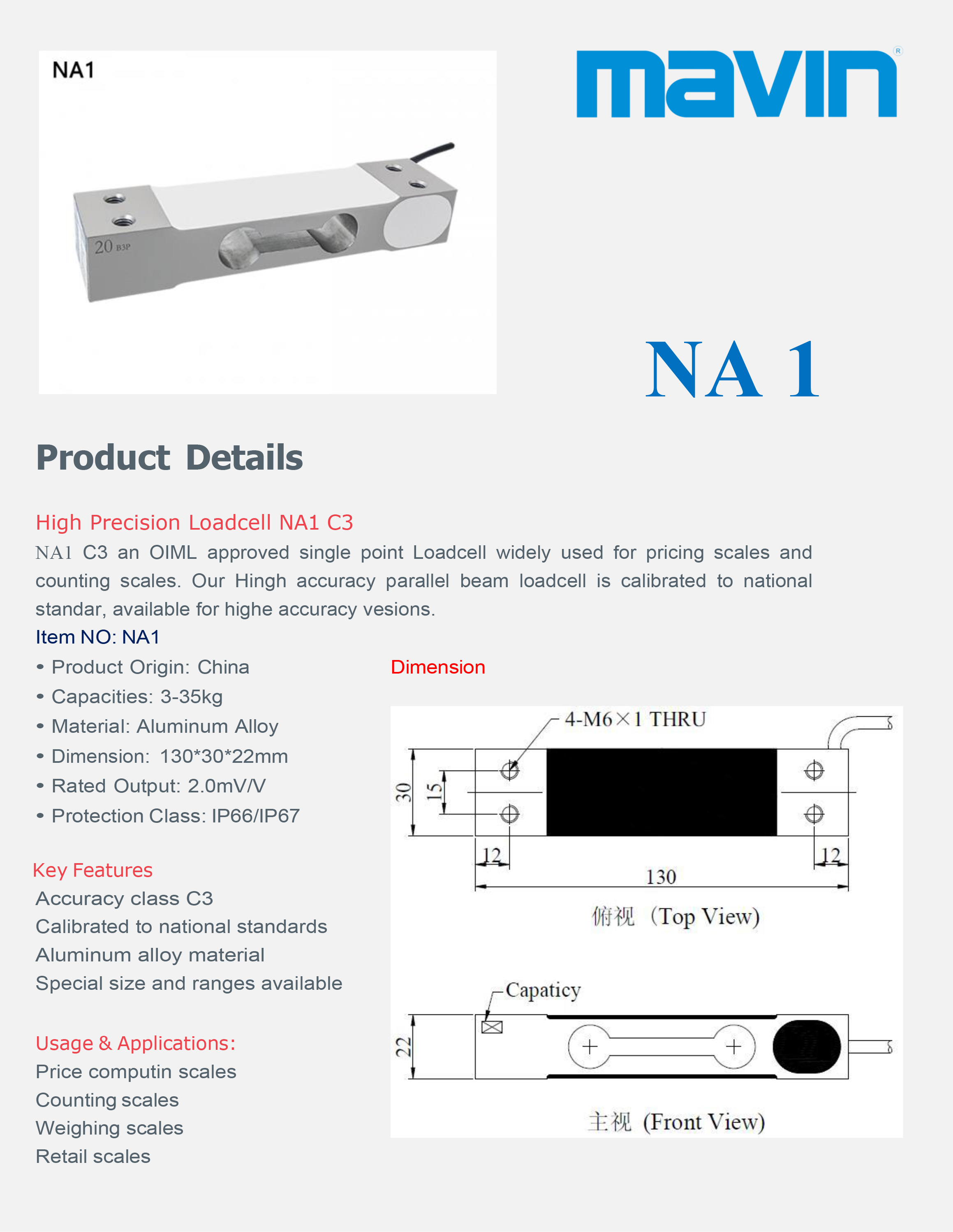

Product Characteristics
Off center compensated (OIML R76)
High accuracy
Aluminum alloy construction
Desighed according to IP 65
| Model | NA1 | |
| Rated Capacity (kgf) | 20, 30, 35, 40, 45 | |
| Accuracy Class | – | |
| Combined Error (% R.O) | ≤ 0.02 | |
| Creep for 30 min (% R.O) | ≤ 0.015 | |
| Excitation | Recommended (V) | 5 ~ 12 |
| Maximum (V) | 15 | |
| Compensated Temperature Range (0C) | -10 ~ +40 | |
| Operating Temperature Range (0C) | -30 ~ +80 | |
| Material & plate | Aluminum alloy | |
