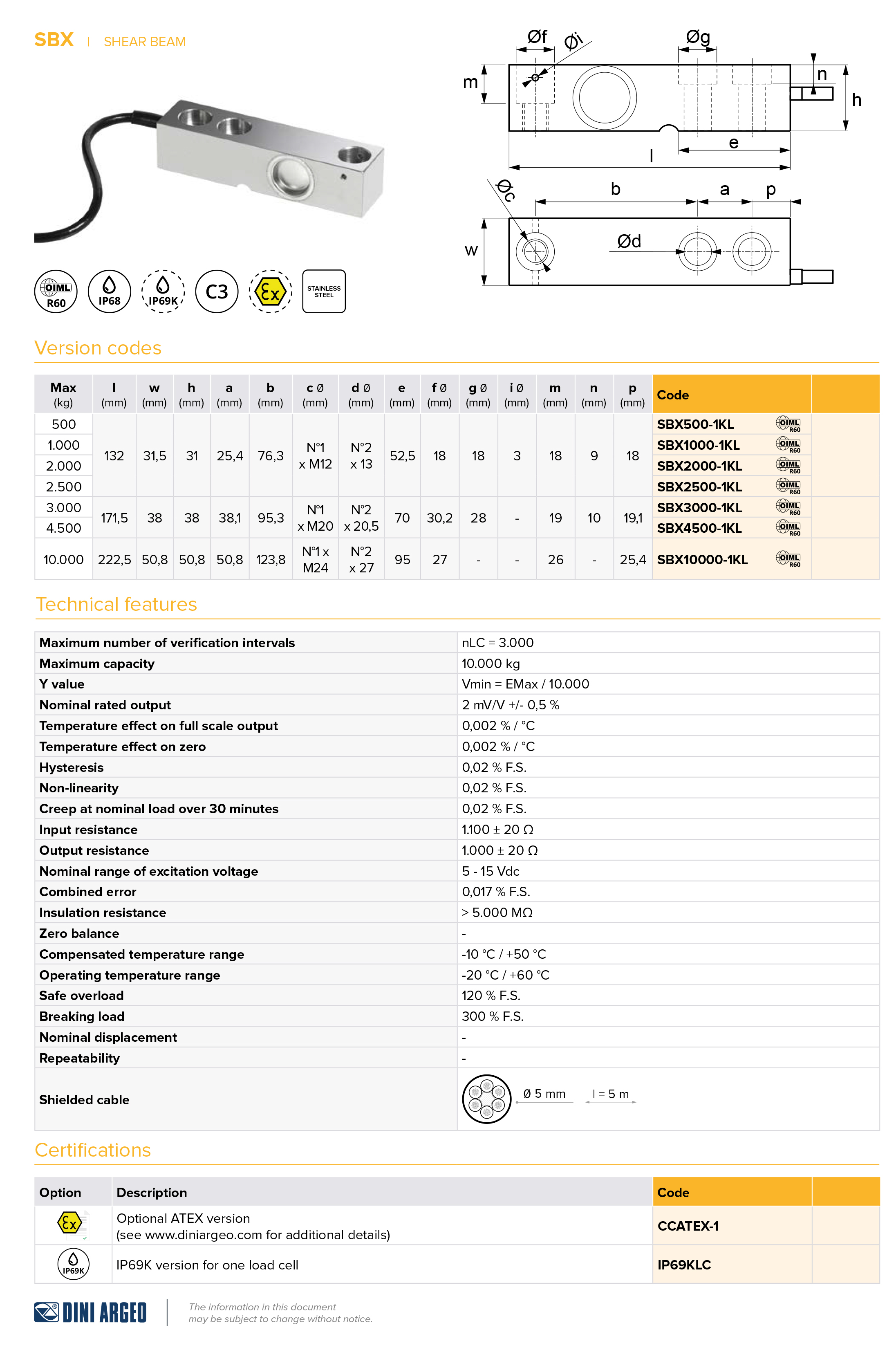

Loadcell DINI ARGEO SBX
C3 PRECISION CLASS
STAINLESS STEEL CONSTRUCTION WITH LASER WELDING
IP68 PROTECTION, IP69K UPON REQUEST
MAX. CAPACITIES FROM 500 TO 2500 kg
SHIELDED CONNECTION CABLE
TEST CERTIFICATE AVAILABLE UPON REQUEST
| Model | SBX | |
| Rated Capacity (kgf) | 500, 1000, 2000, 2500, 3000, 4500, 10000 | |
| Accuracy Class | C3 – 3000 | |
| Rate Output mV/V | 2.0 ± 0.5% | |
| Creep Error (30 minutes) %RO | ± 0.02 | |
| Nonlinearity %RO | ± 0.02 | |
| Hysteresis %RO | ± 0.02 | |
| Repeatability %RO | – | |
| Zero Balance %RO | – | |
| Safe Overload % Emax | 120 | |
| Maximum Overload % Emax | 300 | |
| Excitation Voltage | Recommended (V) | 5 ~ 15 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 1100 ± 20 |
| Output (Ω) | 1000 ± 20 | |
| Insulation (MΩ) | > 5.000 | |
| Compensated Temperature Range 0C | -10 ~ +50 | |
| Operating Temperature Range 0C | -20 ~ +60 | |
| Material | Stainless steel | |
| Cable Specification | ø5.0 x 6P x 5m | |
| IP | 68 | |
