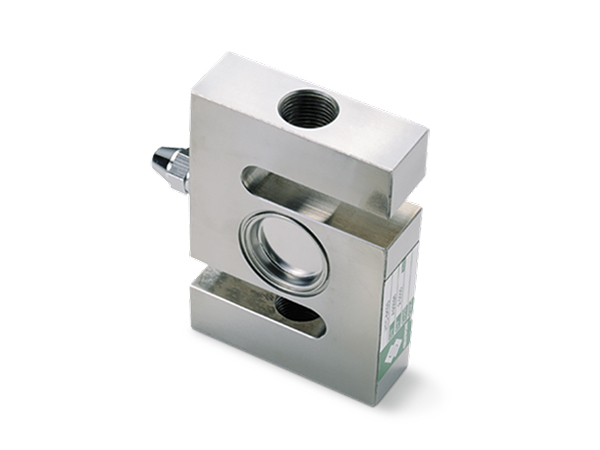

Loadcell CELTRON STC-HSS
Được sản xuất theo tiêu chuẩn C3 precision class
Thiết kế theo tiêu chuẩn: IP 67
Vật liệu : Stainless steel
| Model | STC-HSS | |
| Rated Capacity (klb) | 500, 750lb, 1, 1.5, 2, 2.5, 3, 5, 10kbl | |
| Rated output (mV/V) | 2 ± 0.2% | |
| Insulation Resistance (mΩ) | 5000 | |
| Combined Error (% FS) | ≤ 0.05 | |
| Creep for 30 min (% FS) | ≤ 0.02 | |
| Excitation | Recommended (V) | 5 |
| Maximum (V) | 15 | |
| Teminal Resistane | Excitation (Ω) | 350 ± 3 |
| Output (Ω) | 385 ± 5 | |
| Compensated Temperature Range (0C) | -10 ~ +40 | |
| Operating Temperature Range (0C) | -18 ~ +65 | |
| Material & plate | Stainless steel | |
| Cable | 4-wire shielded cable, 6m long, 5mm | |
|
Colour
|
Function
|
| YELLOW |
SHIELD
|
| RED |
Excitation +
|
| BLACK |
Excitation –
|
| GREEN |
Signal +
|
| WHITE |
Signal –
|
