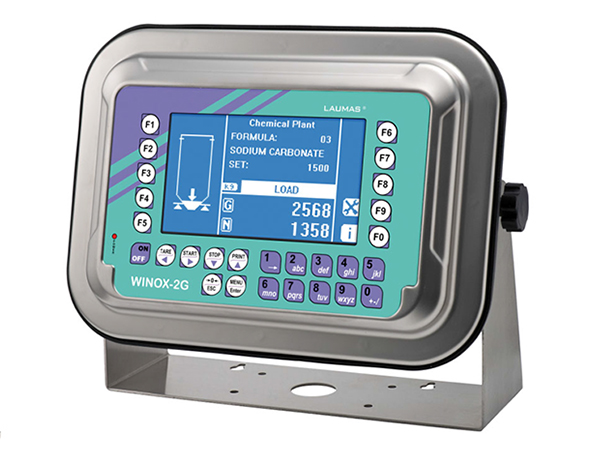

Đầu cân Laumas WINOX – 2G
Màn hình hiển thị LCD độ phân giải 240 x 128 pixel
Kích thước 128 x 75 mm – 27 phím
Power 12 – 24 VDC
Digital input 3EA
Digital output 5EA
Communication RS-232C, Option RS-485, Analog out 4-20mA or 0-10V
| Model | WINOX – 2G |
| Power supply and consumption | 12 ~ 24 VDC ± 10%, 6W (on request: 115 – 230 VAC, 50/60Hz, 6VA) |
| Number of loadcell (Loadcells supply) | up to 8 (350 Ω) – 4/6 wires – 5VDC/ 120mA |
| Linearity (Analog output linaearity) | < 0.01% full scale |
| Thermal drift (Analog output thermal drift | < 0.0005% full scale/0C |
| A/D Converter | 24 bit (16000000 points) – 4.8 kHz |
| Division (With measurement range ± 10mV and sensitivity 2mV/V | ± 999999 , 0.01 μV/d |
| Measurement range | ± 39 mV |
| Usable loadcells sensitivity | ± 7 mV/V |
| Conversions per second | 300/s |
| Display range | ± 999999 |
| Decimals (Display increments) | 0 ~ 4 x1 x2 x5 x10 x20 x50 x100 |
| Digital filter (Readings per second) | 10 levels – 5 ~ 300Hz |
| Relay outputs | 5/4 – max 115 VAC/150 mA |
| Optoisolated digital inputs | 3/2 – 5 ~ 24VDC PNP |
| Serial ports | RS 485, RS 232 |
| Baud rate | 2400, 4800, 9600, 19200, 38400, 115200 (bit/s) |
| Optoisolated analog output (option in request) | 16 bit = 65535 divisions, 0 ~ 20mA, 4 ~ 20mA (up to 300Ω), 0 ~ 10V, 0 ~ 5V, ± 10V, ± 5V(min 10kΩ) |
| Humidity (condensate free) | 85% |
| Storage temperature | -300C – 800C |
| Working temperature | -200C – 600C |
