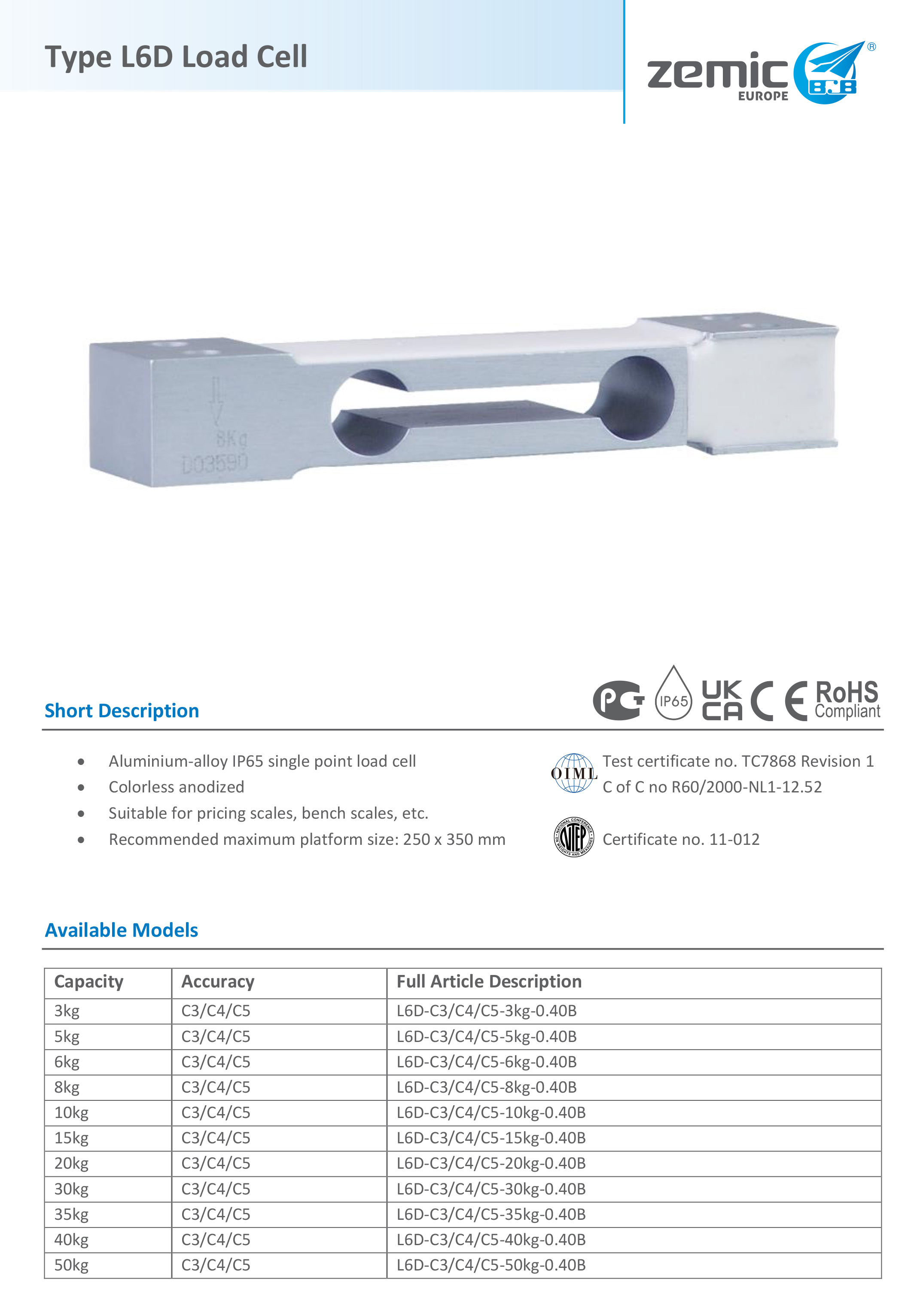

Loadcell ZEMIC L6D
Aluminium-alloy IP65 single point load cell
Colourless anodized
Suitable for pricing scales, bench scales, etc.
Recommended maximum platform size: 250 × 350 mm
| Model | L6D | |
| Rated Capacity (kgf) | 3, 5, 6, 8, 10, 15, 20, 30, 35, 40, 50 | |
| Accuracy Class | C3 – 3000 | |
| Rate Output mV/V | 2.0 ± 0.2 | |
| Combined Error %RO | ± 0.020 | |
| Creep Error (30 minutes) %RO | ± 0.0245 | |
| Temp. Effect on zero %S/10 0C (ZTC) | ± 0.014 | |
| Temp. Effect on sensitivity %S/10 0C (STC) | ± 0.0175 | |
| Zero Balance %RO | ± 2.0 | |
| Safe Overload % Emax | 120 | |
| Maximum Overload % Emax | 150 | |
| Excitation Voltage | Recommended (V) | 5 ~ 12 |
| Maximum (V) | 18 | |
| Resistance | Input (Ω) | 409 ± 6 |
| Output (Ω) | 350 ± 3 | |
| Insulation (MΩ) | > 5.000 | |
| Compensated Temperature Range 0C | -35 ~ +65 | |
| Operating Temperature Range 0C | -40 ~ +70 | |
| Material | Aluminum | |
| Cable Specification | ø 3.8 x 4P x 0.5m | |
| IP | 65 | |
