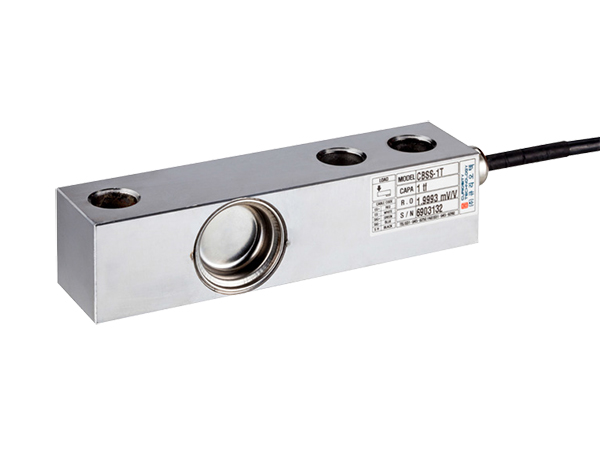

Loadcell CURIOTEC CBSS
Stainless steel construction
Fully envoronmental
Protection IP67
| Model | CBSS | |
| Rated Capacity (kgf) | 300, 500kg, 1, 2, 3, 5tf | |
| Rated output (mV/V) | 2 ± 0.005% | |
| Comboned error (R.O) | ≤ 0.03% | |
| Repeatability (R.O) | ≤ 0.01% | |
| Creep error | ≤ 0.03% in 30min | |
| Zero Balance (R.O) | ≤ 1% | |
| Excitation | Recommended (V) | 10 |
| Maximum (V) | 15 | |
| Teminal Resistane | Excitation (Ω) | 350 ± 3.5 |
| Output (Ω) | 350 ± 3.5 | |
| Compensated Temperature Range (0C) | -10 ~ +40 | |
| Operating Temperature Range (0C) | -20 ~ +80 | |
| Material & plate | Stainless Steel | |
| Cable | 4-wire shielded cable, 5m long | |
